Generic 3.5m Heated PTFE Hose with Stainless Steel Braiding

Description

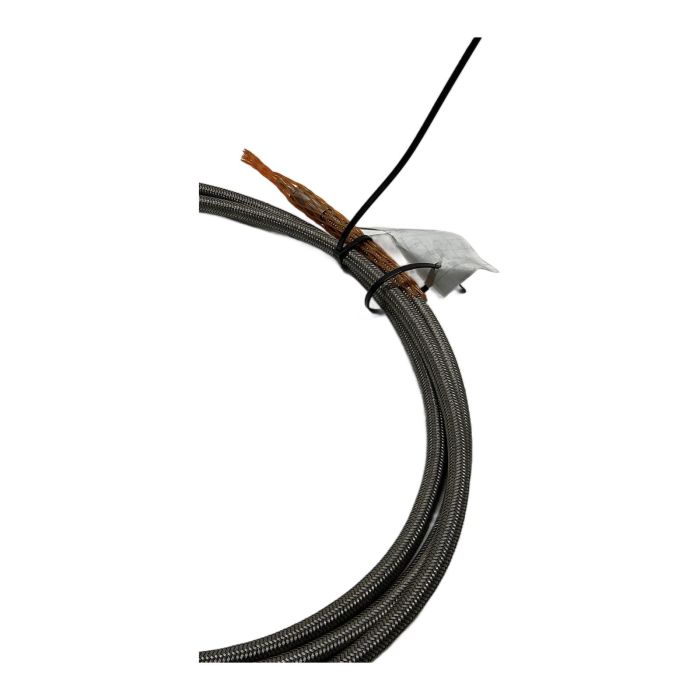

This is a high-quality, general-purpose heated hose, designed for industrial applications where precise temperature control of transferred fluids is critical. The hose features a chemically resistant PTFE inner core, making it suitable for a wide range of media. The exterior is protected by a robust stainless steel braiding, which provides excellent durability, abrasion resistance, and helps ensure even heat distribution. This unit measures 3.5 meters in length with a 1/4 inch inner diameter and is ready for integration into your system. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Type: Heated Hose
• Inner Core Material: PTFE (Polytetrafluoroethylene)
• Outer Reinforcement: Stainless Steel Braiding
• Length: 3.5 meters (3500 mm)
• Inner Diameter: 1/4 inch
• Connection 1: Male fitting (as pictured, described as 6mm on label)
• Connection 2: Unterminated heating wires

Label Info

• Internal Part Number: 103273
• Model Code: L-11-01-B
• Description: PTFE/RVS SLANG 1/4" X 3500MM (AANSL.6M)
• Date: 23/12/2019

Application

Ideal for applications such as hot melt adhesive dispensing, food and beverage transfer, chemical processing, paint lines, and any process requiring the transport of materials at a consistent, elevated temperature to maintain viscosity or prevent solidification.

CO2 Impact

Choosing this reused component avoids the emission of approximately 9.0 kg of CO2, which is comparable to the savings from driving a car for 45 km. Opting for circular solutions makes a tangible difference to your company's environmental footprint.

Availability

This item is in stock and ready for immediate dispatch. It is a used component in excellent condition, tested and verified for functionality.

FAQ

The exact specifications are not listed, but typically PTFE hoses with stainless steel braiding can handle temperatures up to 200-260 deg C (400-500 deg F). The pressure rating depends on the temperature, but for a 1/4 inch hose, it's often rated for over 100 bar (1500 PSI) at ambient temperature. The integrated heating element will have its own specific temperature limit which should be controlled by an external controller.

This hose requires an external temperature controller. You would need to connect the heating wires (orange bundle) and likely a temperature sensor (often integrated, like a PT100 or thermocouple) to a PID controller that regulates the power output to maintain the set temperature.

While this hose comes with a specific male fitting, heated hoses can typically be ordered with a wide variety of fittings (e.g., JIC, NPT, BSP, flanges) to match specific equipment requirements. This particular unit is sold as-is with the fitting shown.
