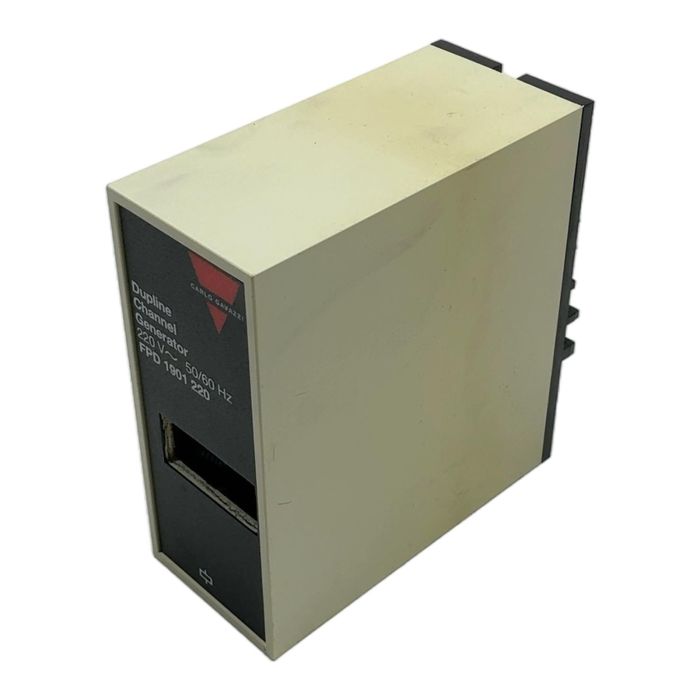

Carlo Gavazzi FPD 1901 220 Dupline Channel Generator

Description

The FPD 1901 220 is a plug-in Dupline Channel Generator from Carlo Gavazzi, designed to power and enable communication on a Dupline 2-wire fieldbus network. It is a crucial component for legacy automation systems that rely on the robust and simple Dupline protocol. This unit operates on a 220V AC supply and features a built-in relay for system diagnostics or alarm functions.

Specifications

• Manufacturer: Carlo Gavazzi
• Model: FPD 1901 220
• Part Number: FPD1901220
• System: Dupline Fieldbus
• Input Voltage: 220V AC, 50/60 Hz
• Power Consumption: Approx. 1.5 VA
• Output Relay: 2.5A at 250V AC
• Mounting Style: 11-pin plug-in socket

Label Info

• Brand: CARLO GAVAZZI
• Type: Dupline Channel Generator
• Model: FPD 1901 220
• EAN: 5709870001319

Application

This channel generator is used in various industrial automation applications, including building automation, water treatment, and material handling, where the Dupline system is implemented for transmitting I/O signals over long distances.

Country of Origin

Manufactured in Italy.

CO2 Impact

Opting for this refurbished or new-old-stock component saves approximately 8 kg of CO2 compared to producing a new one. This is equivalent to the emissions from a 40 km car journey.

Availability

This is an obsolete item, available as a spare part for maintenance and repair of existing installations. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the primary function of a Dupline Channel Generator?

Its main role is to provide the necessary power and carrier signal for the 2-wire Dupline fieldbus, enabling communication between all connected modules. It also features a relay for system status monitoring.

This module requires a standard 11-pin circular relay socket, which can be mounted on a DIN rail or directly onto a panel.

While it operates on the fundamental Dupline protocol, it is not directly compatible with the advanced features of the modern 'smart-Dupline' (G3...) generation without a suitable gateway. It is designed for legacy systems.
