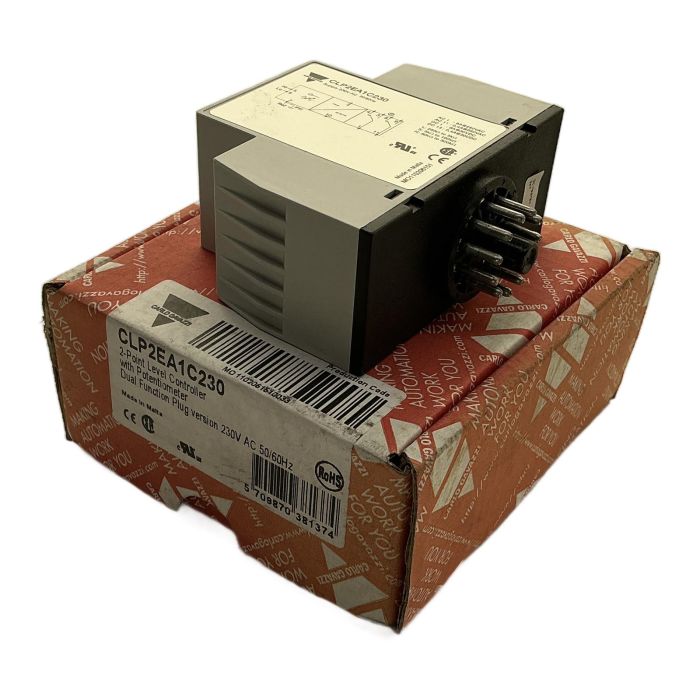

Carlo Gavazzi CLP2EA1C230 Level Controller

Description

The Carlo Gavazzi CLP2EA1C230 is a versatile conductive level controller designed for single or dual-level monitoring of conductive liquids. It provides reliable control for filling or emptying functions, making it an ideal solution for a wide range of industrial and commercial applications. With its adjustable sensitivity and plug-in design, this controller ensures easy installation and precise performance.

Specifications

• Manufacturer: Carlo Gavazzi
• Model: CLP2EA1C230
• Function: Dual Function Conductive Level Controller
• Supply Voltage: 230V AC, 50/60Hz
• Output: 1 x SPDT Relay
• Contact Rating (AC-1): 8A at 250V AC
• Contact Rating (DC-1): 8A at 30V DC
• Sensitivity Range: Adjustable from 250 Ohm to 500 kOhm
• Mounting Type: 11-pin circular plug-in socket

Label Info

• Model: CLP2EA1C230
• Supply: 230V AC 50/60Hz
• Contact Ratings: AC 1: 8A@250VAC, DC 1: 8A@30VDC
• Sensitivity Ranges: L: 250 Ohm to 5kOhm, S: 5kOhm to 100kOhm, H: 50kOhm to 500kOhm

Application

This level controller is suitable for monitoring levels in wells, water tanks, industrial sumps, and reservoirs containing conductive liquids such as tap water, wastewater, or chemical solutions.

Country of Origin

Made in Malta.

CO2 Impact

By purchasing this reused item, you contribute to a more sustainable future by avoiding the production of a new one, saving an estimated 4.0 kg of CO2. This saving is comparable to the emissions from driving a standard car for 20 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This is a conductive level controller, designed for use with conductive liquids like tap water, wastewater, milk, or weak chemical solutions. It is not suitable for non-conductive liquids such as oil, fuel, or distilled water.

The CLP2EA1C230 requires a standard 11-pin circular socket (undecal base) for mounting, such as the Carlo Gavazzi ZPD11 or equivalent models.

The function is selected by how you wire the output relay contacts (Normally Open vs. Normally Closed) to your pump or valve control circuit. Refer to the wiring diagram on the product label or the official datasheet for specific connection details for each function.
