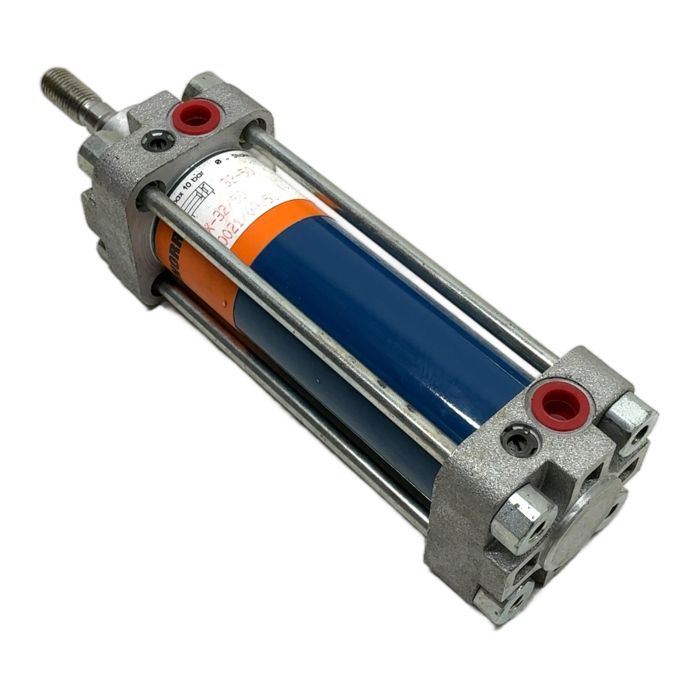

Knorr DNX-32/50 Pneumatic Tie-Rod Cylinder

Description

The Knorr DNX-32/50 is a high-quality, double-acting pneumatic cylinder built to the ISO 15552 standard. This ensures full interchangeability with other manufacturers' cylinders of the same standard. Its robust tie-rod construction provides durability and reliable performance in demanding industrial environments. This cylinder is ideal for applications requiring precise and powerful linear movement.

Specifications

• Manufacturer: Knorr
• Model: DNX-32/50
• Bore Diameter: 32 mm
• Stroke Length: 50 mm
• Maximum Operating Pressure: 10 bar
• Standard: Conforms to ISO 15552
• Cushioning: Pneumatic, adjustable at both ends (assumed standard feature)
• Piston Rod Thread: M10x1.25

Label Info

• Type: DNX-32/50
• Pmax: 10 bar
• Serial/Order Code: L80021/00050

Application

This cylinder is suitable for a wide variety of automation tasks, including clamping, positioning, pushing, lifting, and sorting applications in manufacturing, packaging, and material handling systems.

Country of Origin

Germany.

CO2 Impact

Choosing this pre-owned component saves approximately 4.2 kg of CO2 compared to a new one, contributing to a more sustainable operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

Is this cylinder magnetically coupled for position sensing?

Answer: Yes, standard ISO 15552 cylinders like the DNX series typically include a magnetic piston, allowing for the use of external cylinder sensors to detect piston position.

What are the port sizes for the air connections?

Answer: For a 32mm bore ISO cylinder, the standard pneumatic connection port size is G1/8 inch.

Can this cylinder be operated without lubrication?

Answer: Most modern ISO cylinders are designed for non-lubricated operation, as they are lubricated for life during assembly. However, if lubricated air is introduced once, it must be continued for the life of the cylinder.
