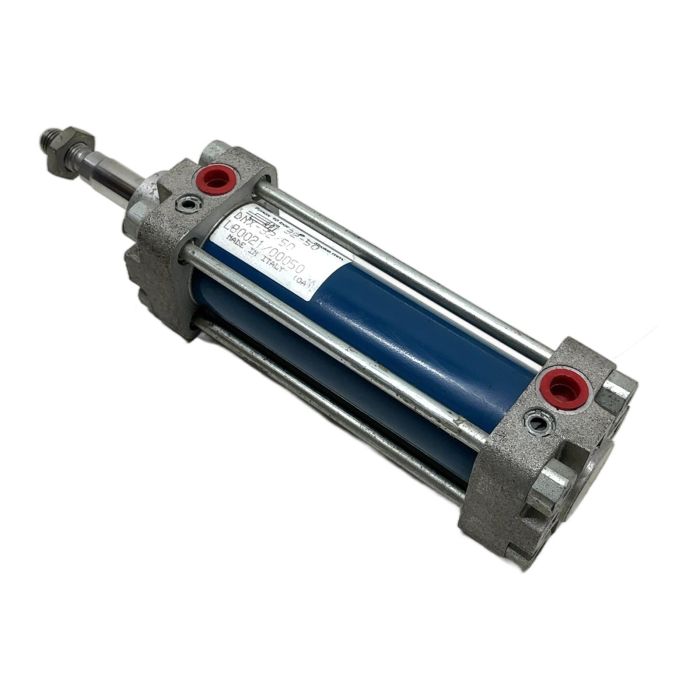

Univer DNX-32/50 Pneumatic Cylinder

Description

This Univer DNX-32/50 is a robust and reliable pneumatic cylinder, designed and manufactured in Italy. Conforming to the ISO 15552 standard, this tie-rod cylinder is interchangeable with other major brands, offering flexibility in machine design and maintenance. It features a 32 mm bore and a 50 mm stroke, making it suitable for a wide variety of industrial automation applications requiring precise linear force and motion. The cylinder is rated for a maximum operating pressure of 10 bar.

Specifications

• Manufacturer: Univer
• Type: DNX-32/50
• Standard: ISO 15552
• Bore Diameter: 32 mm
• Stroke Length: 50 mm
• Maximum Operating Pressure: 10 bar
• Action: Double-acting

Label Info

• Model: DNX-32/50
• Order Code: L80021/00050
• P.max: 10 bar

Application

Ideal for use in packaging machinery, assembly lines, material handling, and general automation systems where controlled linear movement is required.

Country of Origin

Made in Italy.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid the production of a new one, which saves approximately 4.0 kg of CO2. This is comparable to the emissions from driving a standard car for 20 kilometers.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The ISO 15552 standard defines the main mounting dimensions for pneumatic cylinders with detachable mountings. This means the Univer DNX-32/50 is dimensionally interchangeable with cylinders of the same standard from other manufacturers like Festo, SMC, or Parker, simplifying replacement and system design.

While not explicitly stated on the label, standard ISO 15552 cylinders of this type are typically double-acting, meaning compressed air is used to both extend and retract the piston rod. This is confirmed by the presence of two air ports.

Yes, Univer's ISO 15552 cylinders, including the DNX series, typically come with a magnetic piston as standard, allowing for the use of proximity sensors mounted in the profile slots or on the tie-rods for position feedback.
