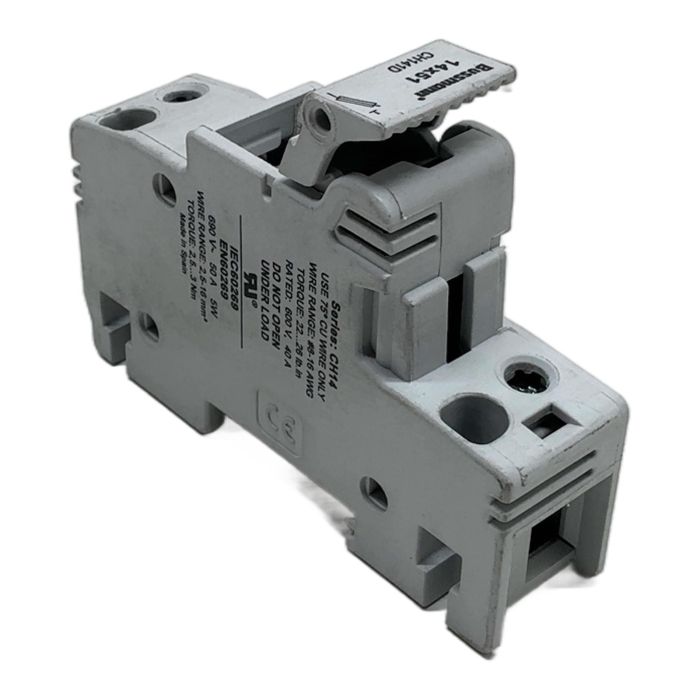

Bussmann CH141D 1-Pole Fuse Holder for 14x51mm Fuses

Description

The Eaton Bussmann series CH141D is a high-quality, modular fuse holder designed for industrial applications requiring reliable overcurrent protection. This single-pole unit is easily mounted on a standard DIN rail and is designed to house 14 x 51mm cylindrical fuses. Its robust construction ensures durability and safety in demanding electrical environments.

Specifications

• Manufacturer: Bussmann (Eaton)
• Model: CH141D
• Number of Poles: 1
• Fuse Size Compatibility: 14 x 51 mm
• IEC Voltage Rating: 690V AC
• IEC Current Rating: 50A
• UL Voltage Rating: 600V AC
• UL Current Rating: 40A
• Mounting Type: DIN Rail
• Power Dissipation: 5W

Label Info

• IEC/EN 60269
• UL Listed
• Wire Range (UL): #8-16 AWG (Copper only)
• Wire Range (IEC): 2.5-16 mm2
• Torque (UL): 22-26 lb.in
• Torque (IEC): 2.5-3 Nm

Application

Ideal for use in control panels, machinery, motor control circuits, and power distribution units where robust circuit protection is essential.

Country of Origin

Made in Spain

CO2 Impact

By purchasing this reused component, you are saving approximately 3.2 kg of CO2, which is comparable to the emissions from a 16 km car journey. Choose sustainable industrial parts.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the maximum wire size this CH141D holder can accommodate?

The CH141D accepts a wire range of #8-16 AWG according to UL standards, or 2.5 to 16 mm2 according to IEC standards.

Is this fuse holder touch-safe?

Yes, the Bussmann CH series is designed to be IP20 finger-safe, protecting personnel from accidental contact with live parts when properly installed and closed.

Can I use fuses other than 14x51mm in this holder?

No, this holder is specifically designed for 14x51mm cylindrical fuses. Using a different size would compromise the safety and performance of the device.
