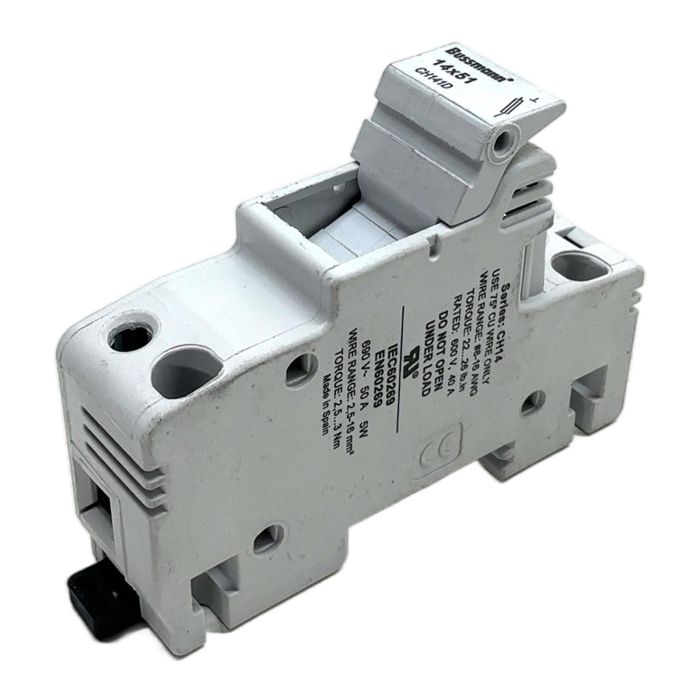

Bussmann CH141D DIN Rail Fuse Holder

Description

The Bussmann CH141D is a high-quality, single-pole modular fuse holder designed for DIN rail mounting. Part of the reliable CH series, it provides robust overcurrent protection for industrial control systems, power distribution panels, and other demanding electrical applications. It is designed to safely house 14 x 51mm cylindrical fuses and features a finger-safe design (IP20) to prevent accidental contact with live parts. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Bussmann (Eaton)
• Type: CH141D
• Number of Poles: 1
• Fuse Size: 14 x 51 mm
• IEC Voltage Rating: 690V AC
• IEC Current Rating: 50A
• UL Voltage Rating: 600V AC
• UL Current Rating: 40A
• Mounting: 35mm DIN Rail
• Maximum Power Dissipation: 5W

Label Info

• Series: CH14
• Standards: IEC60269, EN60269
• Wire Range (IEC): 2.5 - 16 mm2
• Wire Range (UL): #8-16 AWG
• Torque (IEC): 2.5 - 3 Nm

Application

Ideal for use in industrial machinery, HVAC systems, control panels, and power distribution units where reliable overcurrent protection with 14x51mm fuses is required.

Country of Origin

Made in Spain.

CO2 Impact

By purchasing this pre-owned fuse holder, you are saving approximately 2.8 kg of CO2 emissions. This is a sustainable choice that supports the circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

What type of fuses can be used with the CH141D?

This holder is designed for 14 x 51mm cylindrical fuses, including gG/gL for general purpose and aM for motor protection applications.

Yes, the Bussmann CH141D is designed to be finger-safe with an IP20 protection rating, which enhances safety during installation and maintenance.

The holder is rated for a maximum power dissipation of 5W from the installed fuse, ensuring it operates within safe thermal limits.
