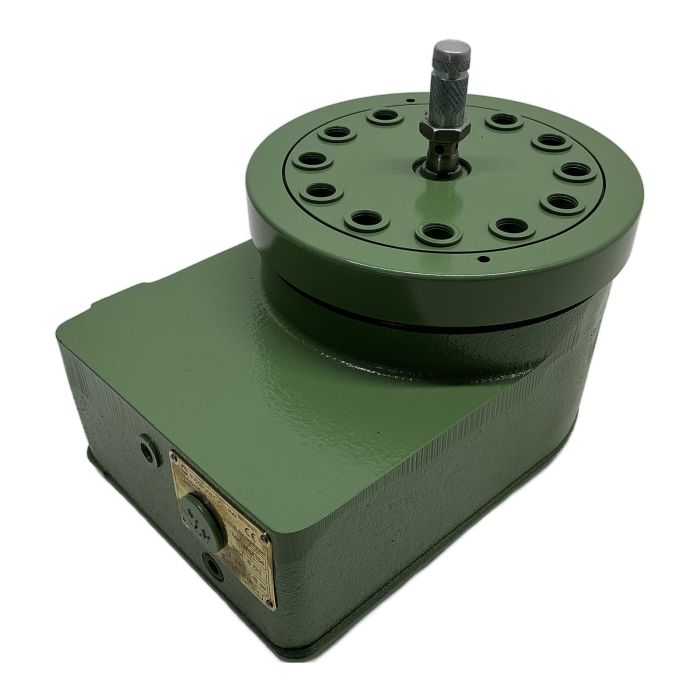

Buschjost Pneumatic Rotary Actuator 2-8 bar 8287154

Description

This robust pneumatic rotary actuator from IMI Buschjost, model 8287154, is engineered for the automation of quarter-turn valves in industrial applications. With a control pressure range of 2-8 bar, it delivers reliable and precise motion. Its ATEX certification makes it suitable for use in potentially explosive atmospheres, ensuring safety in demanding environments.

Specifications

• Manufacturer: IMI Buschjost
• Type: Pneumatic Rotary Actuator
• Model: 8287154
• Control Pressure (p-St): 2-8 bar
• Ambient Temperature: -25 to +70 deg C
• Mounting: Top-mount for valves

Label Info

• Type: 8287154
• Serie: 8/21
• ATEX Gas/Dust: II 2 GD c IIB T85 deg C
• ATEX Mining: I M2 c Tmax 55 deg C

Application

Ideal for industrial automation, process control, automation of ball and butterfly valves, and applications within the chemical and petrochemical industries where ATEX certification is required.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this component saves approximately 18 kg of CO2, which is comparable to the emissions of driving a car for 90 kilometers. Opting for reused parts significantly reduces industrial waste and energy consumption.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What type of valve is this actuator compatible with?

Answer: This actuator is designed for quarter-turn valves like ball valves and butterfly valves. The mounting interface on top follows standard patterns, but you should verify the specific bolt pattern and shaft connection for compatibility with your valve.

Answer: For optimal performance and longevity, it is recommended to use compressed air filtered to at least 40 micrometers, lubricated or non-lubricated. Using clean, dry air according to ISO 8573-1:2010 standards will prevent internal component wear.

Answer: Standard rotary actuators are typically fixed at 90 degrees of rotation. Some models may have adjustable end-stops to fine-tune the open and closed positions by a few degrees. Please consult the manufacturer's datasheet for model 8287154 to confirm if this specific unit has adjustable stops.
