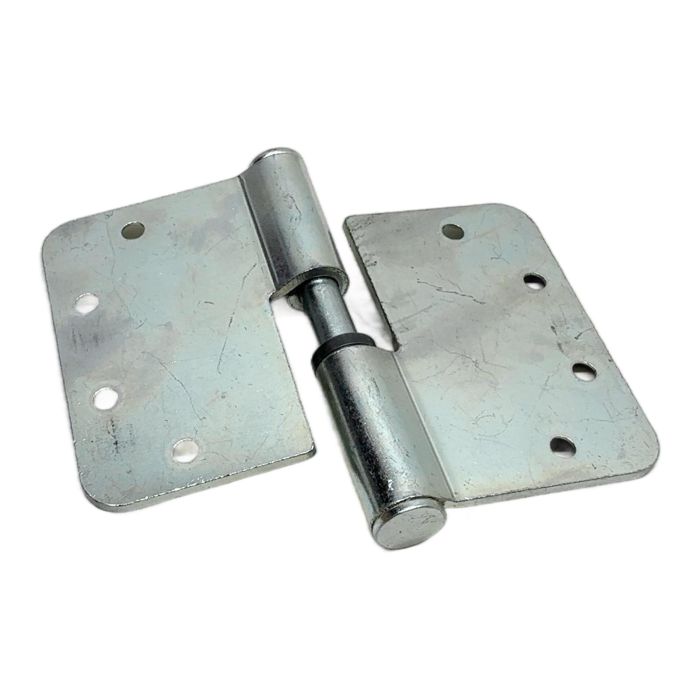

BSW BB807 Steel Ball Bearing Hinge

Description

This is a heavy-duty ball bearing butt hinge, model BB807, manufactured by BSW. It is engineered for durability and smooth operation in demanding applications. The hinge is constructed from steel with a zinc-plated finish for corrosion resistance and is certified according to the European standard EN 1935, ensuring high quality and performance.

Specifications

• Manufacturer: BSW
• Model: BB807
• Type: Ball Bearing Butt Hinge
• Material: Steel
• Finish: Zinc Plated
• Mounting: 8-hole (4 per leaf), countersunk

Label Info

• CE EN 1935: Complies with European standards for single-axis hinges.
• Grade: 10 (Suitable for doors up to 40 kg, tested for 50,000 cycles)

Application

Ideal for use on medium to heavy-weight internal or sheltered external doors in industrial, commercial, and public buildings where frequent use is expected.

Country of Origin

This product is typically manufactured in Belgium.

CO2 Impact

By purchasing this pre-owned hinge, you are avoiding the emission of approximately 0.8 kg of CO2 associated with the production of a new one. This is comparable to the emissions from driving a standard car for 4 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'EN 1935 Grade 10' marking mean?

This is a European standard certification for single-axis hinges. Grade 10 specifies the hinge's durability and load capacity. It is tested for 50,000 cycles and is suitable for a door mass of up to 40 kg when used as a pair.

The hinge has a zinc-plated finish, which provides good corrosion resistance for indoor or sheltered outdoor applications. For direct exposure to harsh weather, a stainless steel or a more robustly coated hinge would be recommended for maximum longevity.

You should use countersunk screws that match the size of the holes in the hinge leaves. The material and length of the screws will depend on the door and frame material (e.g., wood screws for a wooden door, machine screws for a metal frame). Always ensure the screws provide a secure and flush fit.
