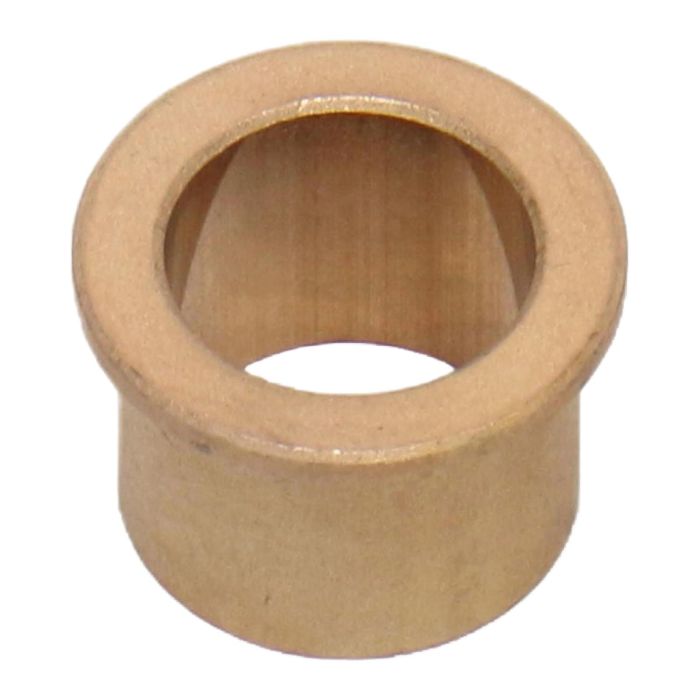

BRK Flanged Sleeve Bearing 16x20x16mm

Description

This is a set of high-quality flanged sleeve bearings, model BRK 016/020/016P. These components are essential for a wide range of mechanical applications, providing smooth rotational motion while reducing friction. Manufactured from sintered bronze, they are self-lubricating, making them ideal for maintenance-free operations or in applications where regular lubrication is difficult. The flange provides positive location and resists axial loads.

Specifications

• Type: Flanged Sleeve Bearing
• Inner Diameter (ID): 16 mm
• Outer Diameter (OD): 20 mm
• Length: 16 mm
• Material: Sintered Bronze
• Quantity: 10 pieces (as pictured)

Label Info

• Model: BRK 016/020/016P

Application

These bushings are commonly used in machinery, automotive parts, agricultural equipment, and general industrial applications where rotational or oscillating movement occurs. Their self-lubricating properties make them suitable for dry-running conditions.

Country of Origin

The country of origin for this product could not be determined from the available information.

CO2 Impact

By choosing these surplus bearings, you are helping to avoid the CO2 emissions associated with new production, which we estimate at 0.4 kg. This saving is comparable to the emissions from driving a standard car for 2 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

These bearings are made from sintered bronze, which is a porous material impregnated with oil. This allows them to be self-lubricating during operation.

For optimal performance with this type of bearing, it is generally recommended to use an f7 tolerance for the shaft and an H7 tolerance for the housing bore.

Standard sintered bronze bearings are typically suitable for operating temperatures up to 80-120 deg Celsius. For higher temperatures, special lubricants or materials would be required.
