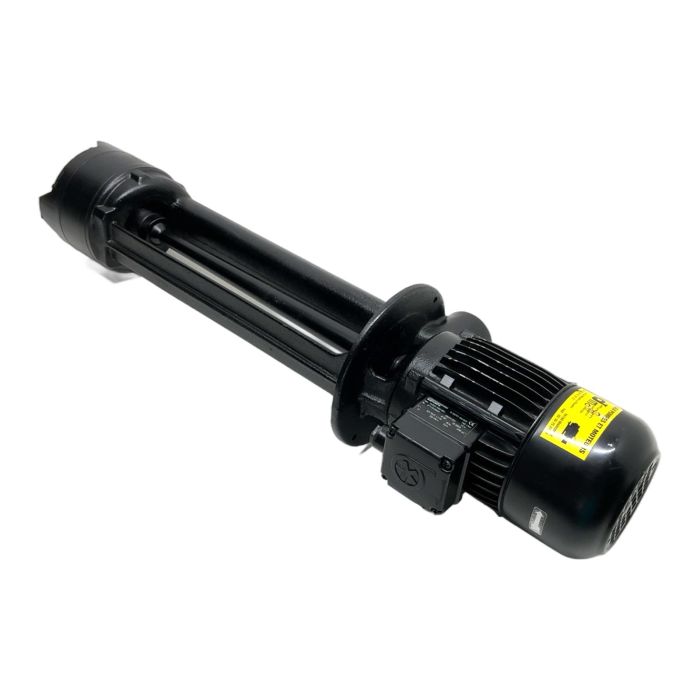

Brinkmann Pumps TA302/490+001 Coolant Immersion Pump

Description

The Brinkmann Pumps TA302/490+001 is a high-performance vertical immersion pump designed for coolant circulation on machine tools. It features a robust 1.1 kW motor and is engineered for reliability and long service life in industrial settings. This pump provides a consistent flow rate for cooling and lubrication applications, ensuring optimal machine performance.

Specifications

• Manufacturer: Brinkmann Pumps
• Type: TA302/490+001
• Power Rating: 1.1 kW (IE2 Efficiency)
• Voltage: 3-phase, 220-240V (Delta) / 380-420V (Star)
• Frequency: 50 Hz
• Current: 5.0 A (at 230V) / 2.9 A (at 400V)
• Speed: 2700 min-1
• Flow Rate: 160 l/min
• Delivery Head: 12 m
• Immersion Depth: 490 mm
• Protection Class: IP 55

Label Info

• Type: TA302/490+001
• No.: 0711010662-69644 001
• Standard: EN 60034

Application

Ideal for use in CNC machining centers, grinding machines, and filtration systems where reliable delivery of cooling emulsions, grinding oils, and other low-viscosity fluids is critical.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this surplus unit over a new one avoids the emission of approximately 116 kg of CO2, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

It is designed for filtered machine tool coolants, such as emulsions and grinding oils, with low viscosity. It is not suitable for highly abrasive or corrosive fluids.

The immersion depth is fixed at 490 mm as determined by the pump's column length. It cannot be extended or shortened without significant modification.

For the 380-420V connection, a motor protection switch should be set according to the nominal current of 2.9 A, with a trip class appropriate for motor starting currents. Always consult a qualified electrician.
