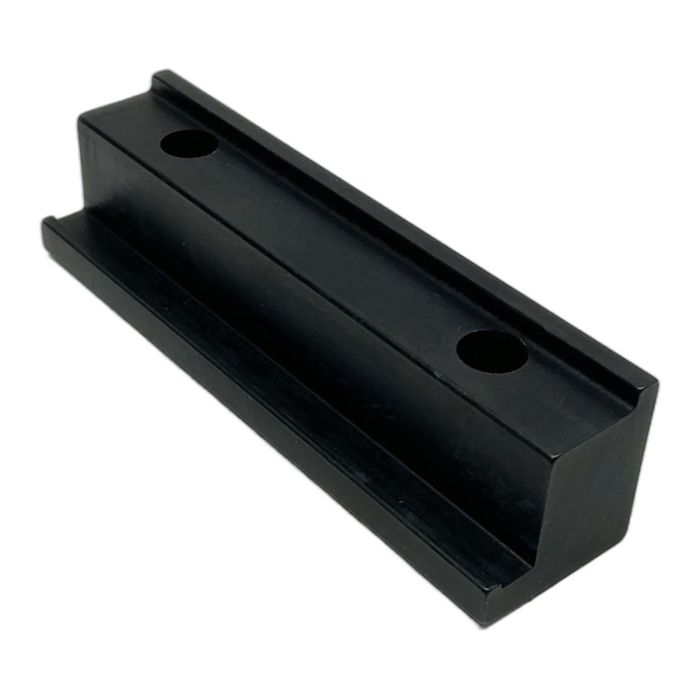

Bosch Rexroth R117519024 Clamping Piece for Linear Guides

Description

This is an original clamping piece (Spannstueck) from Bosch Rexroth, model R117519024, designed for securely mounting linear guide rails of size 20 and 25. Its robust steel construction ensures a rigid and precise connection in demanding machinery.

Specifications

• Manufacturer: Bosch Rexroth
• Part Number: R117519024
• Type: Clamping Piece (Spannstueck)
• Compatibility: For guide rails size 20 and 25
• Length: 80 mm
• Material: Steel, chemically blackened

Label Info

• Part Number: R117519024
• Description: SPANNSTUECK 20/25-80

Application

Used to fix and align linear guide rails in industrial automation, CNC machinery, and custom machine-building applications, ensuring stability and accuracy of movement.

Country of Origin

Germany

CO2 Impact

Opting for this reused component prevents the emission of approximately 0.7 kg of CO2, equivalent to the energy needed for 84 smartphone charges.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the correct tightening torque for the mounting screws of the R117519024 clamping piece?

The correct tightening torque depends on the screw size and grade used for mounting. Always refer to the official Bosch Rexroth assembly instructions for your specific linear guide rail system to ensure proper installation and avoid damage.

Can this clamping piece be used with guide rails from other manufacturers?

The R117519024 is specifically designed and dimensioned for Bosch Rexroth ball rail systems of sizes 20 and 25. While it might physically fit other brands, compatibility and performance are not guaranteed. For optimal results, use it exclusively with the corresponding Rexroth components.

What is the purpose of the 'chemically blackened' surface treatment?

The chemically blackened finish provides a moderate level of corrosion resistance, protecting the steel component from environmental factors during storage and operation. It also reduces light reflection and provides a uniform, durable surface.
