Bosch Rexroth Directional Spool Valve

Description

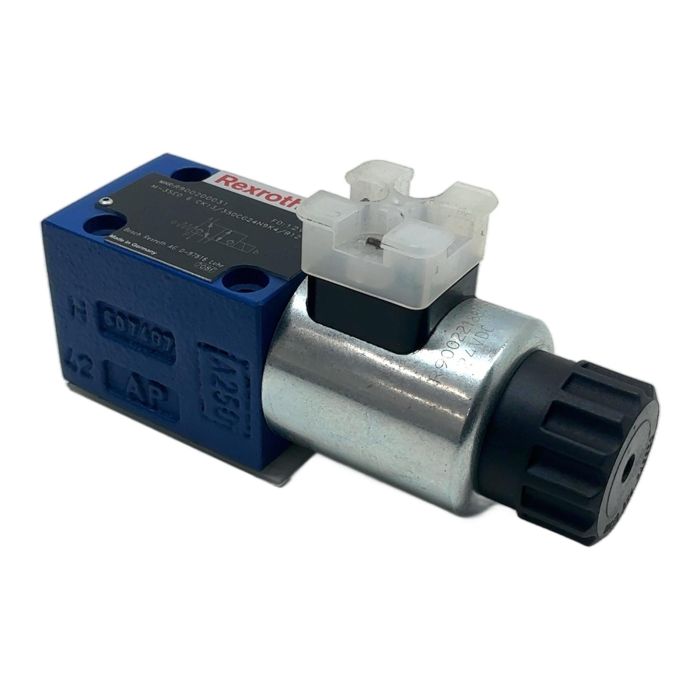

This is a M-3SED 6 series direct operated directional spool valve from Bosch Rexroth. It is a high-performance hydraulic component designed for controlling the start, stop, and direction of fluid flow. This valve features solenoid actuation with a 24V DC coil and is suitable for subplate mounting according to the NG6 / CETOP 3 / NFPA D03 interface standard. It includes a concealed manual override for operational flexibility.

Specifications

• Manufacturer: Bosch Rexroth
• Type: Direct Operated Directional Spool Valve
• Model: M-3SED 6 CK13/350CG24N9K4/B12
• Part Number (MNR): R900200031
• Size: NG6 (CETOP 3)
• Maximum Operating Pressure: 350 bar
• Control Voltage: 24V DC
• Electrical Connection: DIN EN 175301-803 with LED (Connector N9K4)
• Spool Symbol: CK13 (Tandem Center)

Label Info

• MNR: R900200031
• FD: 12W07
• Type: M-3SED 6 CK13/350CG24N9K4/B12

Application

This valve is widely used in various industrial hydraulic applications, including machine tools, production lines, presses, and mobile machinery, where precise and reliable directional control is required.

Country of Origin

Made in Germany

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid the emission of approximately 60.0 kg of CO2, which would be generated during the production of a new unit. This is a significant contribution to environmental sustainability.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The "CK13" designation refers to a specific spool configuration. It is a 3-position, spring-centered valve where the center position connects ports A and B to the tank (T) while blocking the pressure port (P). This is a 'tandem center' configuration, useful for unloading the pump in the neutral position.

This valve is designed for use with mineral oil-based hydraulic fluids (HL, HLP) according to DIN 51524. It can also be used with certain biodegradable fluids, but it's crucial to consult the official Bosch Rexroth datasheet to ensure compatibility with your system's fluid and operating temperatures.

This listing is for the valve itself as pictured. The N9K4 electrical connection requires a standard DIN EN 175301-803 (also known as Form A or DIN 43650) connector plug. This plug is a standard component and is typically sourced separately.
