Rexroth 4WRAE 10 Proportional Directional Control Valve

Description

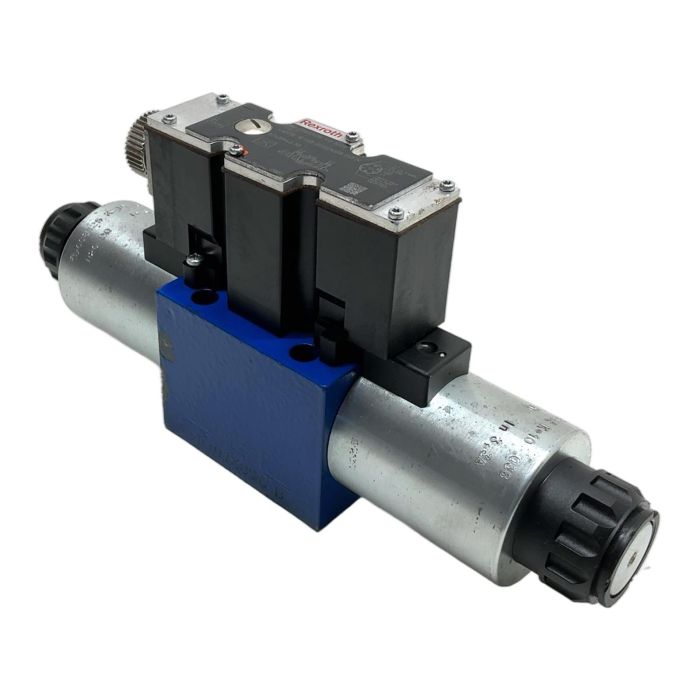

The Bosch Rexroth 4WRAE 10 E60-22/G24N9K31/F1V is a high-performance, direct-operated proportional directional valve with integrated electronics (OBE). Designed for mounting patterns according to ISO 4401, this size 10 valve provides precise and responsive control of flow direction and magnitude in hydraulic circuits. Its robust construction and electrical position feedback make it ideal for demanding applications where accuracy and reliability are paramount.

Specifications

• Manufacturer: Bosch Rexroth
• Series: 4WRAE
• Size: 10 (NG10)
• Spool Symbol: E60-22
• Maximum Flow: 60 L/min
• Operating Voltage: 24V DC
• Control Signal: +/-10V or 4-20mA
• Electrical Connection: M12 connector, 5-pole (F1)
• Seals: FKM (Viton)
• Mounting: ISO 4401-05-04-0-05

Label Info

• Model: 4WRAE 10 E60-22/G24N9K31/F1V
• MNR: R900929318
• SN: 2

Application

This valve is commonly used in machine tools, plastic injection molding machines, presses, and general industrial automation where precise control of hydraulic actuators is required.

Country of Origin

Made in Germany.

CO2 Impact

Reusing this component saves approximately 31 kg of CO2 emissions compared to manufacturing a new one, contributing to a more sustainable industrial process.

Availability

This item is a used product in excellent working condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

For optimal performance and longevity, use mineral oil-based hydraulic fluids (HL, HLP) according to DIN 51524. The required fluid cleanliness class is ISO 4406 20/18/15.

The integrated electronics (OBE) are factory-set for the specified command signals (+/-10V or 4-20mA). There are typically potentiometers for zero point and gain adjustment, but it is not a user-programmable device.

For the standard 5-pole A-coded M12 connector (F1), the typical pinout is: Pin 1: +24V DC Supply, Pin 2: Command Signal +, Pin 3: 0V Supply, Pin 4: Command Signal -, and Pin 5: PE (Protective Earth).
