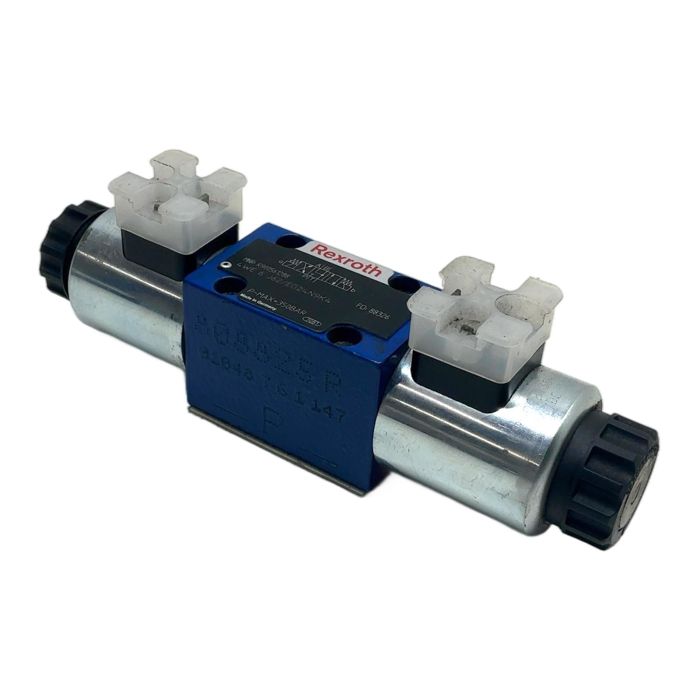

Bosch Rexroth 4WE 6 Hydraulic Directional Valve

Description

This is a direct-operated directional spool valve, model 4WE 6 J62/EG24N9K4, from Bosch Rexroth. It is a high-quality component designed for controlling the start, stop, and direction of fluid flow in hydraulic systems. With its dual 24V DC solenoids and robust design, it offers precise and reliable performance. This valve is built for subplate mounting according to the ISO 4401 standard, making it a versatile choice for a wide range of industrial applications.

Specifications

• Manufacturer: Bosch Rexroth
• Type: 4WE 6 J62/EG24N9K4
• Material Number: R900561288
• Valve Type: 4/3-way Directional Spool Valve
• Size: NG6 / CETOP 3
• Mounting Interface: ISO 4401-03-02-0-05
• Operating Pressure (Max): 350 bar
• Actuation: 2 Solenoids
• Solenoid Voltage: 24V DC
• Spool Symbol: J
• Manual Override: Yes, concealed

Label Info

• MNR: R900561288
• Model: 4WE 6 J62/EG24N9K4
• P-MAX: 350 BAR
• FD: 88326

Application

This valve is commonly used in machine tools, manufacturing equipment, mobile hydraulics, and general industrial machinery where reliable directional control of hydraulic actuators is required.

Country of Origin

Made in Germany

CO2 Impact

Choosing this reused valve saves an estimated 18.0 kg of CO2 compared to a new one. This is equivalent to the CO2 absorption of a mature tree over a year.

Availability

This product is a used item that has undergone a thorough inspection. It is a reliable and cost-effective solution for your spare parts needs. Order now from PLC2Day for expert support and fast delivery.

FAQ

This valve uses the K4 connection type, which requires a DIN EN 175301-803 (formerly DIN 43650) Form A connector. The plugs are not included with this unit.

Yes, the solenoids on the Rexroth 4WE 6 series are replaceable. The corresponding part number for the 24V DC solenoid coil can be found in the Bosch Rexroth datasheet for this valve series.

The material number R900561288 and type code 4WE 6 J62/EG24N9K4 officially correspond to the 'J' spool configuration, where ports P, A, B, and T are all connected in the center (unactuated) position. The diagram on the nameplate is likely a generic graphic. Always rely on the official type code and material number for accurate specifications.
