Rexroth Hydraulic Solenoid Valve 24V DC NG6

Description

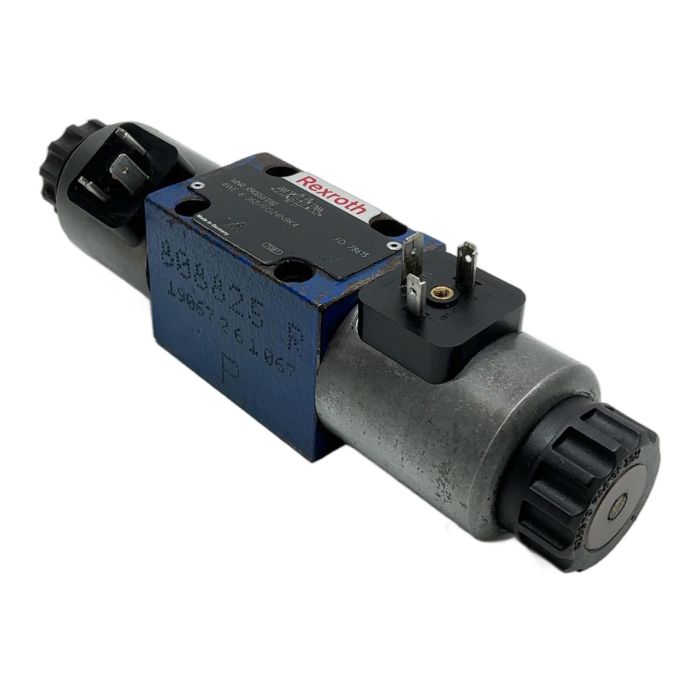

This is a used but fully functional 4/3-way directional spool valve, model 4WE 6 J62/EG24N9K4 from Bosch Rexroth. It is a direct-operated valve with solenoid actuation, designed for reliable performance in various hydraulic applications. With a nominal size of NG6 (CETOP 3), it conforms to standard mounting patterns, making it an easy replacement for existing systems.

Specifications

• Manufacturer: Bosch Rexroth
• Type: Directional Spool Valve
• Model: 4WE 6 J62/EG24N9K4
• Size: NG6 / CETOP 3
• Actuation: Dual Solenoid
• Voltage: 24V DC
• Max Operating Pressure: 350 bar
• Max Flow: 80 l/min
• Spool Symbol: J
• Hydraulic Connection: Conforms to ISO 4401-03-02-0-05

Label Info

• MNR: R900561288
• FD: 78613

Application

Ideal for use in machine tools, manufacturing equipment, mobile hydraulics, and general industrial machinery requiring precise control of hydraulic actuators.

Country of Origin

Made in Germany

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 15.0 kg of CO2 emissions that would be generated from manufacturing a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'J62/EG24N9K4' designation mean?

'J' refers to the spring-centered spool symbol. '62' is the component series. 'E' indicates it's a wet-pin DC solenoid. 'G24' specifies a 24V DC coil. 'N9' indicates the electrical connection type, and 'K4' specifies the individual connector design according to DIN EN 175301-803.

Yes, this valve includes concealed manual overrides at both ends of the solenoids. They can be pushed with a small rod or tool to shift the spool manually for testing or emergency operation.

This is a Size 6 (NG6) valve, which conforms to the ISO 4401-03-02-0-05 and CETOP RP121H R03 mounting standards. It requires four M5 mounting bolts for installation onto a subplate or manifold.
