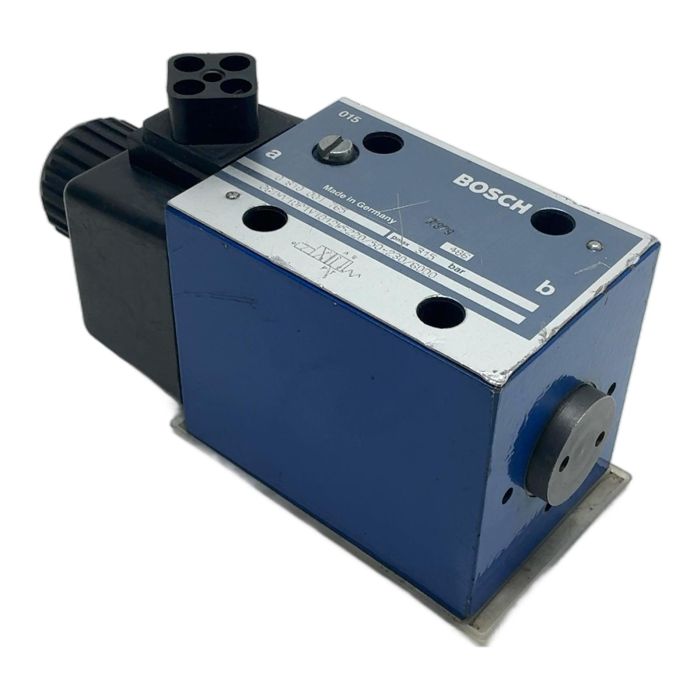

Bosch Rexroth Directional Control Valve 0 810 001 765

Description

This is a direct-operated 4/3-way hydraulic directional control valve by Bosch Rexroth, designed to direct and stop flow in hydraulic systems. This valve is an essential component for reliable control in various industrial machinery.

Specifications

• Manufacturer: Bosch Rexroth
• Type Number: 081WV10P1V1012WS220/50-230/60DO
• Part Number: 0 810 001 765
• Function: 4/3-way Directional Valve
• Nominal Size: NG10
• Maximum Pressure: 315 bar
• Solenoid Voltage: 220V AC at 50Hz, 230V AC at 60Hz
• Connection: DIN 43650-A

Label Info

• Made in Germany
• pmax: 315 bar
• Model code: 081WV10P1V1012WS220/50-230/60DO

Application

Ideal for use in industrial hydraulic systems such as presses, manufacturing lines, and mobile machinery where reliable control over fluid direction is required.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this used part saves an estimated 28.0 kg of CO2 compared to a new one, equivalent to the emissions of driving a car for about 140 kilometers. A sustainable choice for your operations.

Availability

This product is a refurbished or used item that is no longer in production by the manufacturer. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the spool center position for this valve?

In the center position, the spool connects port P (pump) to port T (tank), while the working ports A and B are blocked. This unloads the pump when the valve is not actuated.

This valve requires a standard DIN 43650 Form A connector for the electrical connection.

No, the coil and armature tube are specifically designed for AC operation. Directly replacing it with a DC coil without the correct modifications can lead to malfunction or damage.
