Black Box LE1602A Network Transceiver

Description

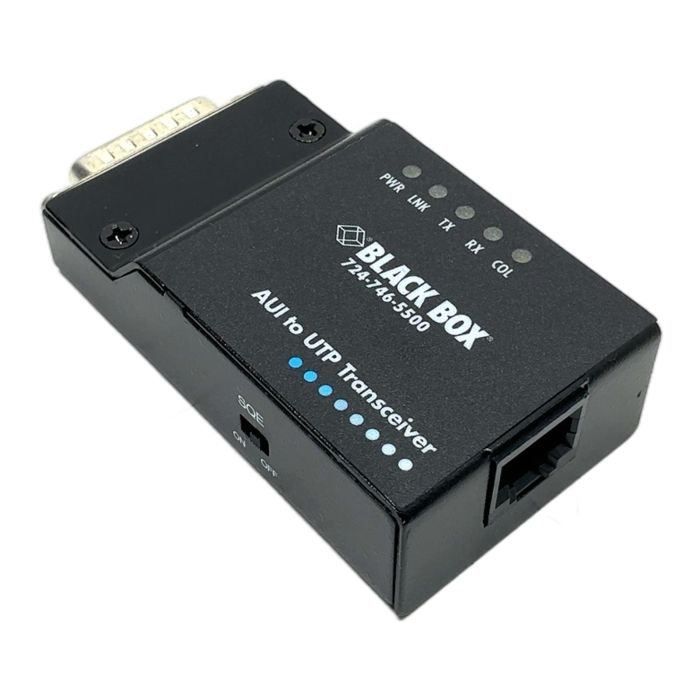

The LE1602A from Black Box is an AUI to UTP transceiver, designed to bridge legacy networking equipment with 10BASE-T Ethernet networks. This compact media converter allows devices with a standard 15-pin AUI port to connect seamlessly to a network using modern RJ45 UTP cabling. It is a plug-and-play device, powered directly from the AUI port, requiring no external power supply. Diagnostic LEDs provide instant status updates on power, link integrity, data transmission (TX), data reception (RX), and network collisions (COL).

Specifications

• Manufacturer: Black Box
• Part Number: LE1602A
• Product Type: AUI to UTP Transceiver
• Network Compatibility: IEEE 802.3 10BASE-T
• Host Interface: 15-pin AUI (DB-15) Male
• Network Interface: 8-pin RJ45 Female
• Data Rate: 10 Mbps
• Features: SQE (Heartbeat) test switch

Label Info

• Serial Number: 0512001397
• Part Number: LE1602A

Application

Ideal for maintaining and integrating legacy computer systems, servers, routers, or other peripherals that feature an AUI port into a 10BASE-T local area network (LAN).

Country of Origin

Made in Taiwan.

CO2 Impact

By purchasing this reused transceiver, you are helping to avoid the production of a new one, saving an estimated 6 kg of CO2 emissions. This is a significant contribution to environmental sustainability.

Availability

This is an obsolete item but is available from our stock. Limited quantities available. Order now from PLC2Day for expert support and fast delivery.

FAQ

The Signal Quality Error (SQE) switch, also known as 'heartbeat', enables or disables a test signal sent by the transceiver to the host's AUI port to confirm functionality. It should be turned ON for most applications but can be turned OFF for compatibility with certain older network interface cards.

No, this device is designed exclusively for 10 Mbps Ethernet standards (10BASE-T, 10BASE5, 10BASE2). It will not function on 100 Mbps (Fast Ethernet) or 1000 Mbps (Gigabit) networks.

No, the LE1602A is powered directly through the 15-pin AUI port from the host network device, which simplifies installation and reduces cable clutter.
