Binsack Reedtechnik Magnetic Proximity Switch

Description

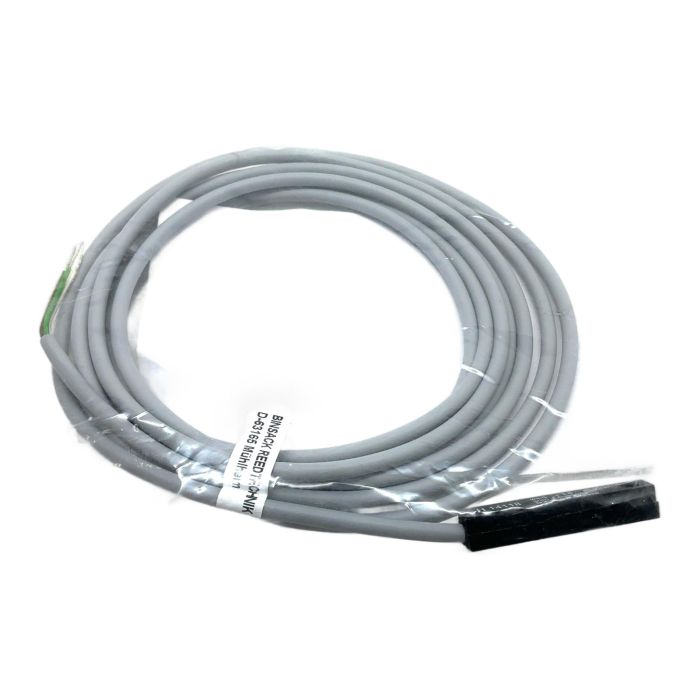

This is a magnetic proximity switch, model 14118 J, manufactured by Binsack Reedtechnik GmbH. It is designed for non-contact position sensing of magnetic fields, commonly used for detecting the piston position in pneumatic cylinders. This sensor offers high reliability and a long service life thanks to its reed switch technology and integrated protection features.

Specifications

• Manufacturer: Binsack Reedtechnik
• Order Number: 14118 J
• Type Number: R347601003
• Operating Voltage: 3.8 to 30V DC
• Maximum Current (Imax): 20mA
• Switching Output: PNP
• Switching Function: Normally Closed (NC)
• Protection: Short-circuit protection, Reverse polarity protection

Label Info

• Typ: R347601003
• Bestell-Nr.: 14118 J
• U max: 3.8 ... 30V DC
• I max: 20mA

Application

Ideal for position detection in automation technology, machine building, and material handling systems. Primarily used with pneumatic actuators and cylinders equipped with magnets.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this component, you contribute to a circular economy, saving approximately 4.0 kg of CO2 compared to a new production. This is equivalent to the carbon absorption of a small tree over a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the switching principle of this sensor?

This is a magnetic proximity switch that operates based on reed contact technology. It activates when a magnetic field of sufficient strength, typically from a magnet mounted on a moving part like a pneumatic cylinder piston, comes into its detection range.

Is this sensor suitable for C-slot and T-slot pneumatic cylinders?

The rectangular housing of the 14118 J sensor is designed for specific groove or slot types. Compatibility depends on the cylinder's slot dimensions. Always verify the mechanical drawings of both the sensor and the cylinder profile to ensure a proper fit. Adapters may be available for different slot types.

The label indicates PNP NC output. What does this mean for wiring?

PNP means the sensor is a "sourcing" type, providing a positive (+) voltage output. NC (Normally Closed) means the output is active (high) when no magnet is detected. When a magnet enters the sensing range, the switch opens, and the output goes low (inactive). According to the label, Brown (BN) should be connected to the positive supply, White (WH) is the signal output, and Green (GN) is connected to the negative supply (0V/ground).
