Binder Angled M12 Male Connector 8-Pin

Description

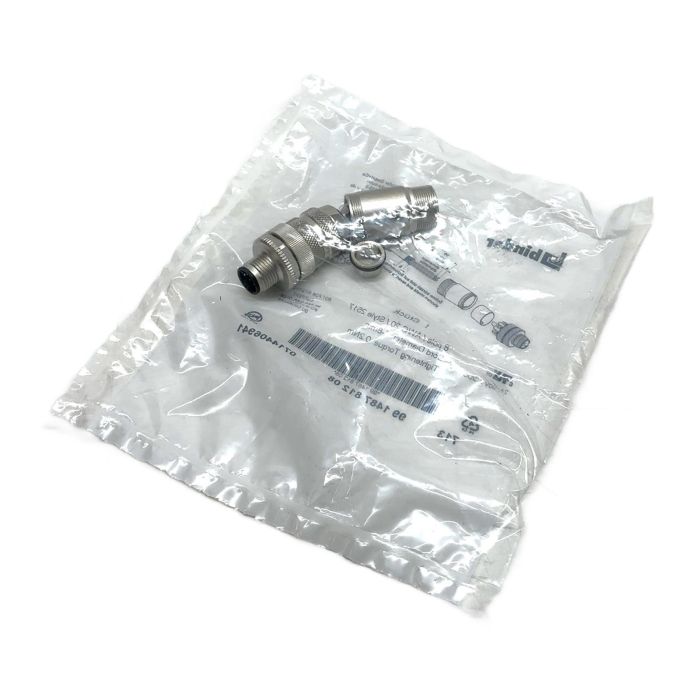

This is a field-attachable, angled M12 male connector from the Binder 713 series, part number 99 1487 812 08. It is engineered for robust and reliable connections in industrial automation systems. The connector features 8 gold-plated contacts with screw termination for easy and secure field wiring. Its rugged metal housing and IP67 rating ensure dependable performance in demanding environments with exposure to dust and moisture.

Specifications

• Manufacturer: Binder
• Series: 713
• Part Number: 99 1487 812 08
• Connector Type: M12 Male, Angled
• Number of Pins: 8
• Coding: A-Coded
• Termination Method: Screw Clamp
• Compatible Wire Gauge: max. 0.5 mm squared / AWG 20
• Accepted Cable Diameter: 6.0 mm to 8.0 mm
• Rated Voltage: 60 V
• Rated Current: 2 A
• Ingress Protection: IP67 (when mated)
• Operating Temperature: -40 deg C to 85 deg C

Label Info

• 1 Stueck (1 Piece)
• 8 pole / AWG 20 / Style 2517
• Cord Diameter: 7-8mm
• Tightening Torque: 0.2Nm

Application

Ideal for connecting sensors, actuators, and data communication devices in factory automation, robotics, measurement and control technology, and process automation. The 8-pin configuration is commonly used for complex signals and communication protocols like RS232 or Ethernet in compact M12 form factors.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this remanufactured component, you are actively participating in the circular economy. This choice avoids the production of a new item, saving an estimated 1.5 kg of CO2 - equivalent to the energy needed for 180 smartphone charges.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This connector achieves an IP67 rating when fully assembled and properly mated with a compatible female counterpart. This means it is fully protected against dust and can withstand temporary immersion in water.

The screw terminals are designed for a maximum wire gauge of 0.5 mm squared, which corresponds to AWG 20.

Yes, this is a shielded connector. The assembly instructions indicate that the cable shield should be shortened and folded back over the internal shielding ring to ensure a reliable 360-degree shield connection for excellent EMI/RFI protection.
