BEUMER IG315/2 2-Channel Inductive Loop Detector

Description

The BEUMER IG315/2 is an industrial-grade 2-channel inductive loop detector designed for the reliable detection of metallic objects. It is commonly used in logistics, traffic control, and automated conveyor systems. This module features a versatile power supply, adjustable sensitivity, and an easy-to-install 11-pin plug-in base, making it a dependable choice for demanding environments. Its clear LED indicators provide immediate visual feedback on power, detection, and loop status.

Specifications

• Power Supply: 230V AC (+/- 10%, 50Hz) or 24V AC/DC (+/- 20%)
• Power Consumption: 3VA
• Output: Relay contacts, max. 250V / 2A / 60W
• Channels: 2
• Loop Inductance Range: 15 uH to 2000 uH
• Operating Temperature: -25 to +80 deg C
• Protection Rating: IP30
• Mounting: 11-pin socket base

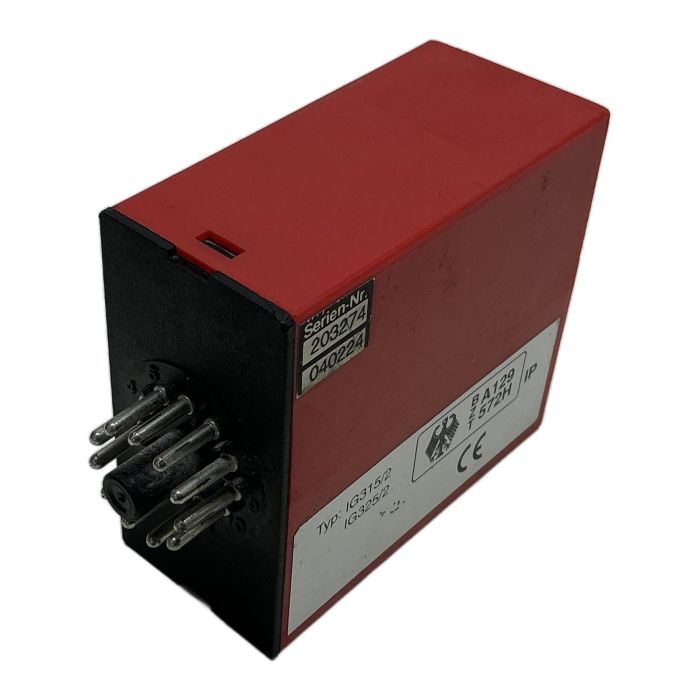

Label Info

• Manufacturer: BEUMER
• Type: IG315/2 / IG325/2
• Part Number: 040224
• Serial Number: 203274

Application

This detector is ideal for applications requiring the detection of vehicles or metallic product carriers, such as controlling gates and barriers, monitoring traffic flow in parking facilities, or managing product positioning on industrial sorting and conveyor lines.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned unit, you help avoid the emission of approximately 12 kg of CO2 that would be required for the production of a new one. This saving is equivalent to the CO2 absorbed by over half a tree in a year.

Availability

This is an obsolete item and is no longer in production by the manufacturer. Availability is limited to existing stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
Can this detector be powered by both 24V DC and 230V AC?

Answer

Yes, the device is versatile and can be wired for either 230V AC (+/- 10%, 50Hz) on pins 1 and 2, or 24V AC/DC (+/- 20%) on pins 1 and 2, according to the pinout diagram. Ensure you connect the correct voltage for your application.

Answer

The detector is designed to work with an inductive loop that has an inductance value between 15 microhenries (uH) and 2000 microhenries (uH). It is crucial to ensure your loop's inductance falls within this range for reliable detection.

Answer

The device has three LEDs for diagnostics. A red LED indicates a 'Loop Defect'. A green LED signals 'Detection', meaning an object is currently within the loop's field. A yellow LED indicates 'Power' and also blinks during the automatic balancing process.
