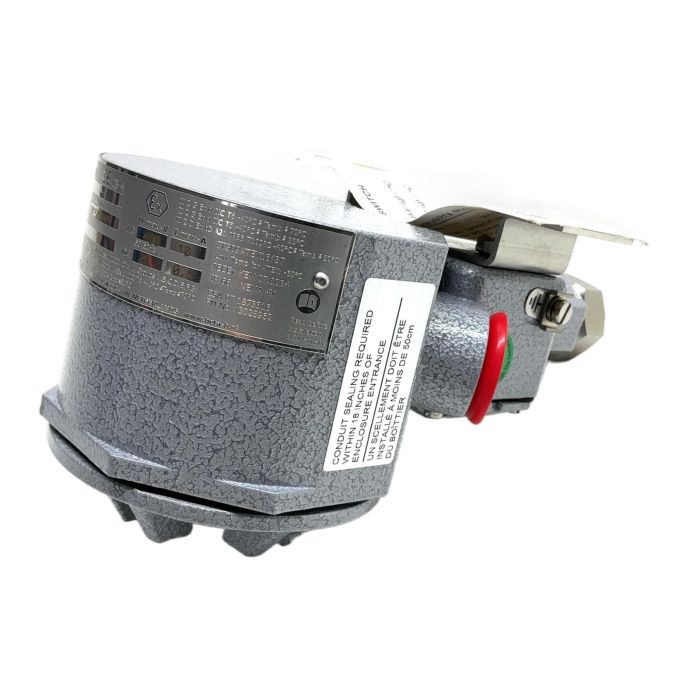

BETA W3 Series Explosion-Proof Pressure Switch

Description

The BETA W3-P706H-S2N-T5-K1 is a high-performance, explosion-proof pressure switch designed for safety and reliability in the most demanding industrial environments. With a wide adjustable range and robust construction, this switch is ideal for process control and safety systems in hazardous locations. Its comprehensive certifications (ATEX, CSA, FM) ensure compliance with international safety standards.

Specifications

• Manufacturer: BETA B.V.
• Series: W3
• Adjustable Range: 1.5 to 32 Bar
• Overrange Proof Pressure: 600 Bar
• Switch Type: SPDT (Single Pole Double Throw)
• AC Rating: 480V max, 10A max
• DC Rating: 28V max, 0.5A max
• Process Connection: 1/2 inch NPT Female (Stainless Steel 316)
• Enclosure Rating: IP66, NEMA 4, 4X
• Ambient Temperature: -40 deg C to +70 deg C

Label Info

• Model: W3-P706H-S2N-T5-K1
• Serial No.: 201502805
• Certifications: Ex II 2 G EEx d IIC T6, CSA Class I/II/III Div 1, FM Approved

Application

This pressure switch is suitable for monitoring and controlling pressure in applications within the oil and gas, chemical, petrochemical, and power generation industries, particularly where explosive atmospheres may be present.

Country of Origin

Made in The Netherlands.

CO2 Impact

Choosing this component saves an estimated 80.0 kg of CO2 compared to a new production. This is a significant contribution to reducing industrial emissions and promoting a circular economy.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'K1' code in BETA's model numbering system typically specifies the process connection. For this model, it indicates a 1/2 inch NPT female connection made from 316 Stainless Steel, offering excellent corrosion resistance.

Yes, the wetted parts, including the 316 Stainless Steel process connection, are designed to be compatible with a wide range of corrosive media. However, always verify chemical compatibility with your specific process fluid against the manufacturer's material specifications.

The setpoint is typically adjusted via an internal screw located under the main cover. The deadband (the difference between the trip and reset points) may be fixed or adjustable depending on the specific microswitch option. Always de-energize the circuit before opening the enclosure for adjustments, as stated on the cover.
