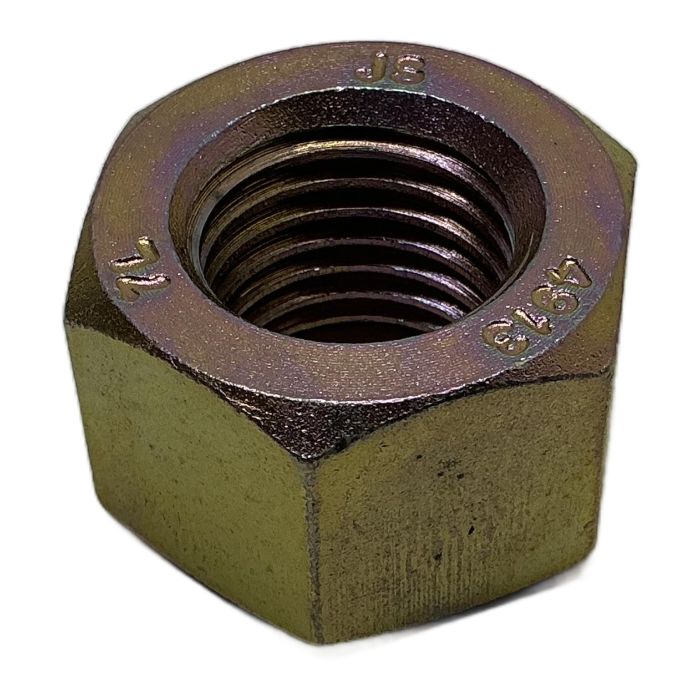

Berardi M30 High-Tensile Hex Nut

Description

This Berardi M30 hexagonal nut is a high-performance fastener designed for demanding industrial applications. Manufactured in Italy, it conforms to the stringent ASTM A194 Grade 16 specification, ensuring superior strength and reliability in high-pressure and high-temperature service. The nut features a zinc-yellow passivated coating for enhanced corrosion resistance.

Specifications

• Manufacturer: Berardi
• Part Number: 100894
• Product Type: Hexagonal Nut
• Thread Size: M30
• Standard: ASTM A194 / ASME SA194
• Material Grade: 16
• Material: Alloy Steel
• Coating: Zinc-Yellow Passivated

Label Info

• Part Number: 100894
• Description: HEX NUT SA194GR.16 M30

Application

Ideal for use in the petrochemical industry, power generation plants, oil and gas extraction, and other critical environments where high-tensile strength and resistance to extreme conditions are required.

Country of Origin

Made in Italy.

CO2 Impact

Choosing this reused component avoids the CO2 emissions from new production, saving an estimated 0.7 kg of CO2. This saving is comparable to driving a car for 3.5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the significance of the 'SA194 GR.16' specification?

Answer

ASTM A194 (or ASME SA194) is a standard for nuts intended for high-pressure and high-temperature service. Grade 16 specifically denotes a nut made from a quenched and tempered chromium-molybdenum-vanadium alloy steel, offering very high tensile strength and performance under extreme thermal and mechanical stress.

Question?
What is the recommended tightening torque for an M30 Grade 16 nut?

Answer

Tightening torque is highly dependent on factors like bolt grade, lubrication, and application requirements. For an M30 Grade 16 nut, a specific torque value must be calculated by an engineer based on the specific joint design. Always consult your project's technical documentation; generic values are not suitable for such critical fasteners.

Question?
Is the yellow coating just for color, or does it provide corrosion resistance?

Answer

The coating is a zinc-yellow passivation (chromate conversion coating). While it provides a distinctive color, its primary purpose is to significantly enhance the corrosion resistance of the underlying zinc plating and steel, protecting the nut from environmental damage during storage and in service.
