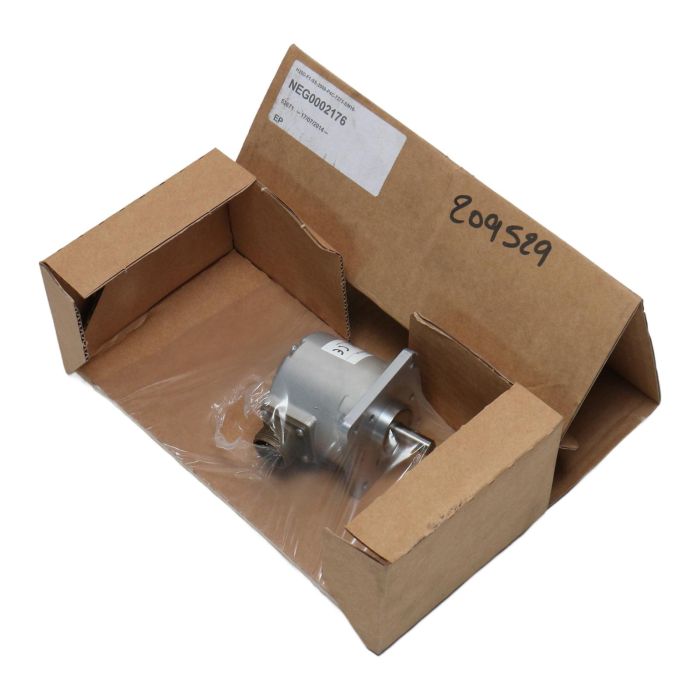

Incremental Encoder: H25D-F1-SS-2500-P4C-7273-SM16- (NEG0002176)

Product Description

Incremental Encoder with wide operating temperature range and ruggedized design for various industrial applications.

Product Specifications

Shaft Diameter: 3/8” standard (1/4” as special feature)
Shaft Loading: Up to 40 pounds axial and 35 pounds radial
Maximum RPM: 10,000 RPM nominal
Output Format: 2 outputs in quadrature, A leads B CCW, 1/2 cycle index, Z, gated with negative B
Supply Voltage: 5 to 28 VDC +/- 5%
Cycles per Shaft Turn: 2 to 80,000
Frequency Response: 300 kHz

Product Label Info

Model Code / Product Markings: H25D-F1-SS-2500-P4C-7273-SM16- (NEG0002176)

52671 - 17/07/2014

Application

From wood harvesting to food processing, this encoder is suitable for various industries such as oil well logging, agricultural equipment, and web process control.

Country of Origin

This product is manufactured in the USA.

Method of Application

Easy to install with industry standard interfaces, suitable for machine control applications.

Safety Instructions

Handle with care to avoid damage, follow proper wiring instructions for optimal performance.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page BEI Sensors

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from BEI Sensors
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Incremental Encoder used for?

This part is typically used in various industries for speed and position control applications.

What are the key advantages of Incremental Encoder?

High noise immunity, wide operating temperature range, and easy installation.

Is H25D-F1-SS-2500-P4C-7273-SM16- (NEG0002176) compatible with my system?

If you're using BEI Sensors control systems, this model will likely be compatible. Contact us to verify.

Alternatives to H25D-F1-SS-2500-P4C-7273-SM16- (NEG0002176)

Consider other incremental encoders with similar specifications for your application needs.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY accepts surplus stock for recovery or resale. Contact us for more information.
