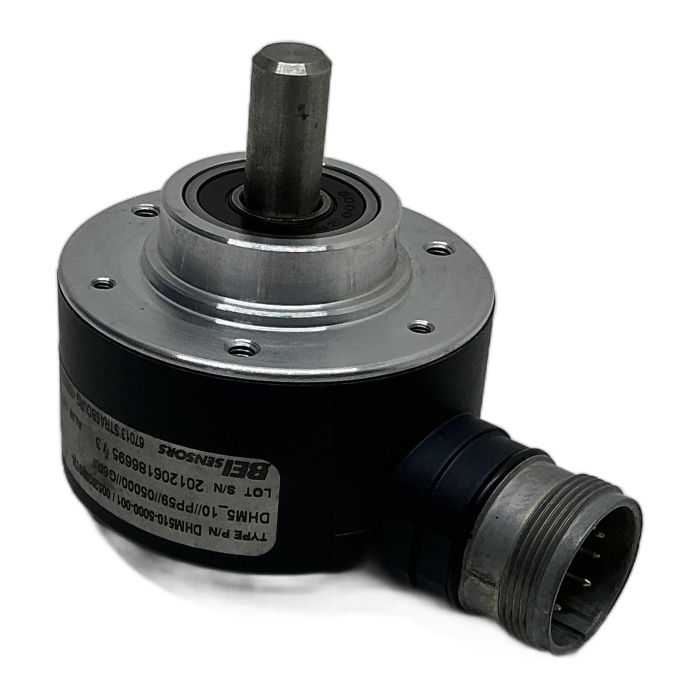

BEI Sensors DHM5 Incremental Rotary Encoder

Description

The BEI Sensors DHM5_10 is a high-performance incremental encoder designed for industrial motion control systems. It delivers precise measurement with a resolution of 5000 pulses per revolution. With a rugged construction and a wide operating voltage range from 5 to 30 VDC, this encoder is versatile and reliable for applications in robotics, CNC machinery, and general factory automation. The 10mm solid shaft ensures a secure mechanical connection.

Specifications

• Manufacturer: BEI Sensors (now Sensata Technologies)
• Model: DHM5_10//PP59//05000//G6R//
• Part Number: DHM510-5000-001
• Product Type: Incremental Encoder
• Resolution: 5000 PPR (Pulses Per Revolution)
• Supply Voltage: 5 - 30 VDC
• Shaft Diameter: 10 mm
• Output Type: Differential Line Driver (indicated by A/A_bar, B/B_bar signals)
• Connection: M23 12-pin Connector

Label Info

• TYPE P/N: DHM510-5000-001 / 005292626134
• DHM5_10//PP59//05000//G6R//
• LOT S/N: 201206186695 / 3
• ALIM S/V: 5-30 Vdc

Application

This encoder is ideal for applications requiring accurate feedback of angular position, speed, and direction. Common uses include motor feedback systems, material handling equipment, packaging machinery, and automated assembly lines.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned component avoids approximately 12 kg of CO2 emissions associated with the production of a new one, contributing to a more sustainable industrial operation.

Availability

In stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the output signal type of this encoder?

The pinout diagram showing complementary channels (A/A_bar, B/B_bar, 0/0_bar) indicates a differential line driver output. This type of output provides excellent noise immunity, making it ideal for long cable runs and electrically noisy environments.

Yes, because the supply voltage range is 5-30 VDC, it can be powered with 5V. When powered with 5V, the output signal levels are typically compatible with standard 5V TTL logic inputs found on many PLCs and motion controllers.

The BEI Sensors DHM5 series encoders are generally rated to IP65 for the housing. This provides protection against dust ingress and low-pressure water jets from any direction, making them robust enough for most industrial environments.
