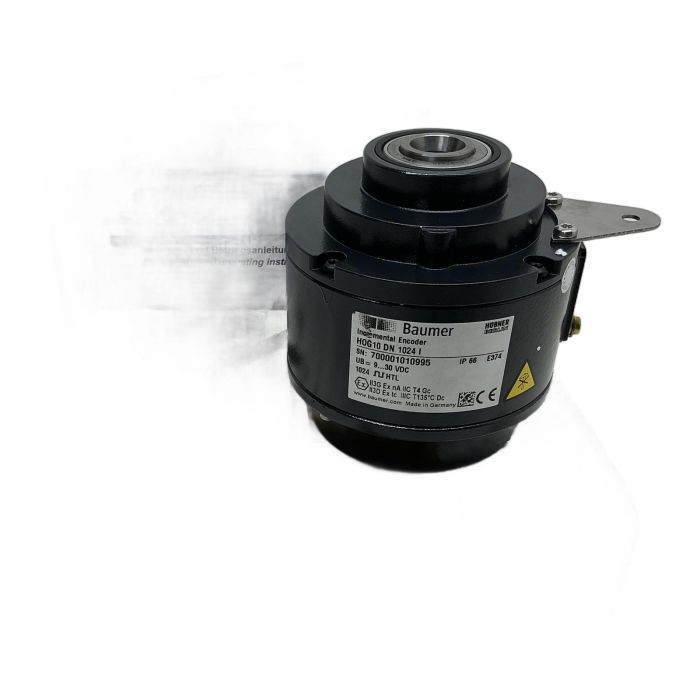

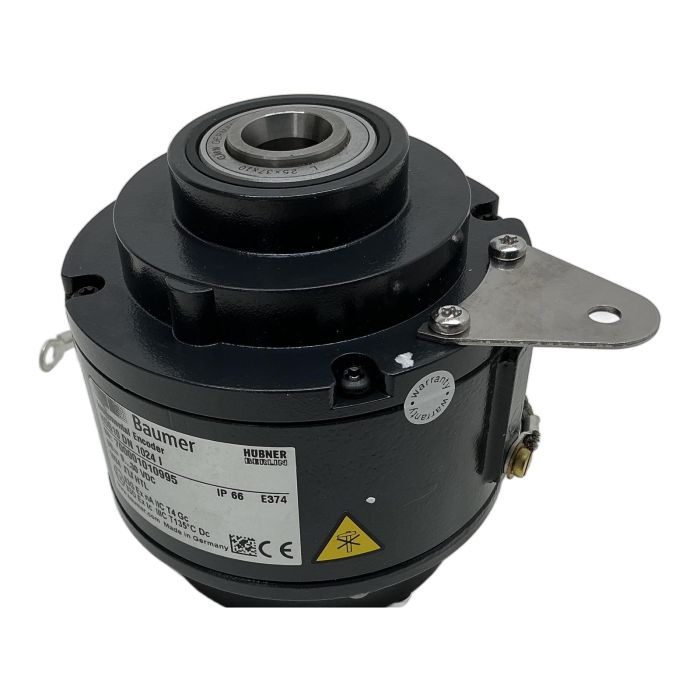

Baumer HOG10 DN 1024 I Heavy-Duty Incremental Encoder

Description

This is the Baumer HOG10 DN 1024 I, a high-performance incremental encoder from the renowned Hubner Berlin series. Engineered for heavy-duty applications, it provides exceptional durability and reliable rotational measurement. Its robust construction with an IP66 rating ensures protection against dust and water ingress, while the ATEX certification makes it safe for use in potentially explosive atmospheres. This encoder is an ideal solution for motor feedback, drive control, and positioning tasks in demanding industrial sectors.

Specifications

• Manufacturer: Baumer
• Type: HOG10 DN 1024 I LR 16H7 KLK-AX
• Part Number: 11070362
• Resolution: 1024 pulses per revolution
• Supply Voltage: 9 to 26 VDC
• Output Signal: HTL (Push-Pull)
• Shaft: Hollow shaft, 16mm bore (H7 tolerance)
• Protection Rating: IP 66
• ATEX Certified: Yes

Label Info

• Ser.No: 700001010995
• UB: 9...26 VDC
• 1024 FL/HTL
• (Ex) II3G Ex nA IIC T4 Gc
• (Ex) II3D Ex tc IIIC T135 C Dc

Application

This encoder is perfectly suited for applications in steel and rolling mills, port and crane technology, mining, and other heavy industries where precision and robustness are paramount.

Country of Origin

Made in Germany

CO2 Impact

Choosing this pre-owned encoder over a new one saves approximately 60 kg of CO2, which is comparable to the emissions from a 300 km car journey.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

FL/HTL refers to the electrical output interface. HTL stands for High-Threshold Logic (or Push-Pull), which is a robust 10-30V signal level common in industrial applications. It is known for its high noise immunity, making it suitable for long cable runs and electrically noisy environments.

Yes. The IP66 rating indicates it is fully protected against dust ingress and powerful water jets. Furthermore, the ATEX markings (II3G and II3D) certify it for use in Zone 2 (gas) and Zone 22 (dust) hazardous areas, making it ideal for such applications.

For a hollow shaft encoder, it is crucial to use a flexible torque arm or tether (like the bracket included) to prevent the encoder body from rotating with the shaft. This tether must allow for some axial and radial play to avoid putting stress on the encoder's bearings, which could lead to premature failure.
