Marchesini (MR) P-3-AP Hydraulic Subplate

Description

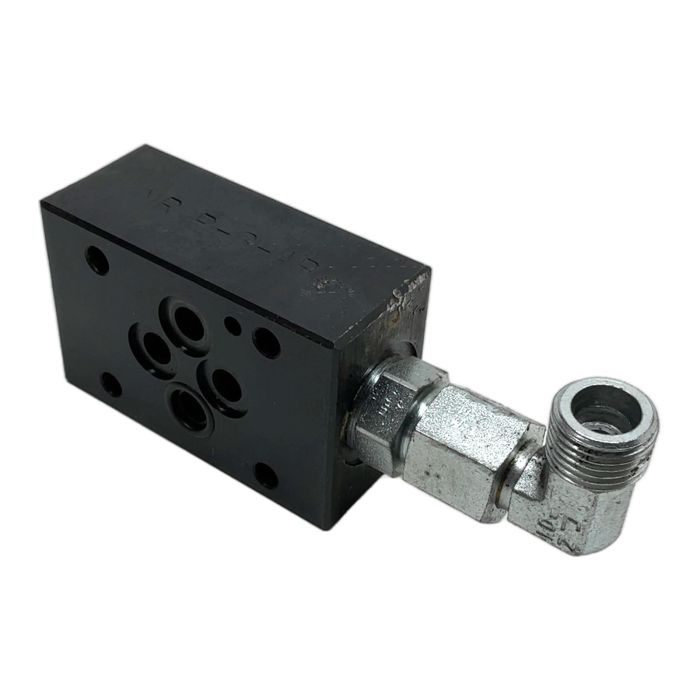

The Marchesini (MR) P-3-AP is a single-station subplate designed for mounting hydraulic directional control valves. It conforms to the internationally recognized CETOP 3 / NG6 / D03 standard, ensuring wide compatibility. This particular model features a side pressure port (P-port), designated by the 'AP' in its model number, which allows for flexible hose and pipe routing. Constructed from solid steel, it provides a durable and stable base for valve operation in demanding industrial hydraulic systems.

Specifications

• Manufacturer: Marchesini (MR)
• Model: P-3-AP
• Interface Standard: CETOP 3 / ISO 4401-03 / NG6 / D03
• Type: Single-station subplate
• Porting Configuration: Side P-port, bottom A, B, T ports (assumed)
• Material: Steel

Label Info

• Stamped on Body: MR P-3-AP

Application

This subplate is ideal for use in various hydraulic power units and machinery where a single CETOP 3 directional valve is required. Common applications include machine tools, presses, manufacturing lines, and mobile hydraulic equipment.

Country of Origin

Made in Italy.

CO2 Impact

By reusing this durable component, you are saving approximately 2.8 kg of CO2, which is equivalent to the emissions of a car driving 14 kilometers. This promotes a circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This subplate features the standard CETOP 3 / ISO 4401-03 / NG6 / D03 mounting pattern. This ensures compatibility with a wide range of directional control valves from various manufacturers adhering to this international standard.

While not explicitly marked, subplates of this type made from steel are typically rated for pressures up to 350 bar (5075 PSI). Always verify this against the specifications of your entire hydraulic system and the valve you intend to mount.

Yes, the elbow fitting is a standard threaded hydraulic component. It can be removed and replaced with a different size, type (e.g., straight), or connection standard to suit your specific plumbing requirements. Ensure proper thread sealant is used upon reinstallation to prevent leaks.
