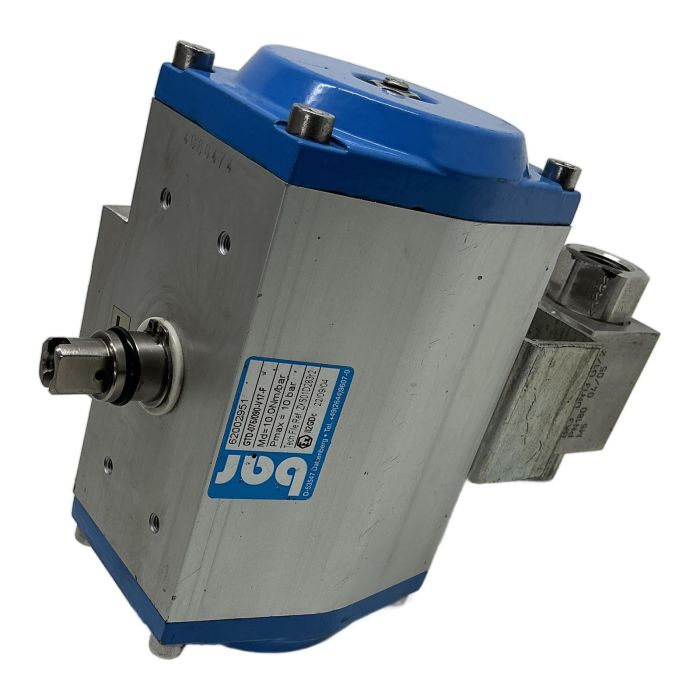

bar Pneumatic Actuator with Pister Ball Valve

Description

This is a complete pneumatic valve assembly, combining a bar GTD-076/090-V17-F double-acting pneumatic actuator with a Pister 4469 L (BK3) high-pressure stainless steel ball valve. This robust unit is designed for reliable automation of quarter-turn valves in industrial process applications. The actuator is ATEX certified (Ex II2GDc), making it suitable for use in potentially explosive environments.

Specifications

• Actuator Manufacturer: bar
• Actuator Model: GTD-076/090-V17-F
• Actuator Part Number: 62002951
• Actuation Type: Pneumatic, Double-Acting
• Max. Operating Pressure: 10 bar
• Torque: 10.0 Nm/bar
• Temperature Range: -20 to +80 deg C
• Valve Manufacturer: Pister
• Valve Model: 4469 L / BK3
• Valve Type: 3-way L-port Ball Valve
• Valve Size: DN13, G1/2 inch ports
• Valve Pressure Rating: PN180
• Valve Material: Stainless Steel (Edelstahl)

Label Info

• Tech File Ref: ZXS01D283r2
• ATEX Marking: Ex II2GDc

Application

This assembly is ideal for automating fluid control in various industries, including chemical processing, oil and gas, water treatment, and general manufacturing. Its high-pressure rating and durable stainless steel construction make it suitable for demanding media and environments.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned assembly, you help avoid the emission of approximately 28 kg of CO2, which is equivalent to the savings from driving a car for 140 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'V17' in the type number typically refers to the seal material used within the actuator. In this case, it indicates FKM (Viton) seals, which are known for their excellent resistance to high temperatures and a wide range of chemicals.

Yes, the actuator has an aluminum body which offers good corrosion resistance. The attached Pister valve is made of stainless steel, making it highly resistant to corrosion. This combination is well-suited for many outdoor and challenging industrial environments.

This actuator features a standard NAMUR interface on the side for mounting a solenoid pilot valve. This allows for easy integration with standard pneumatic control systems and solenoid valves from various manufacturers.
