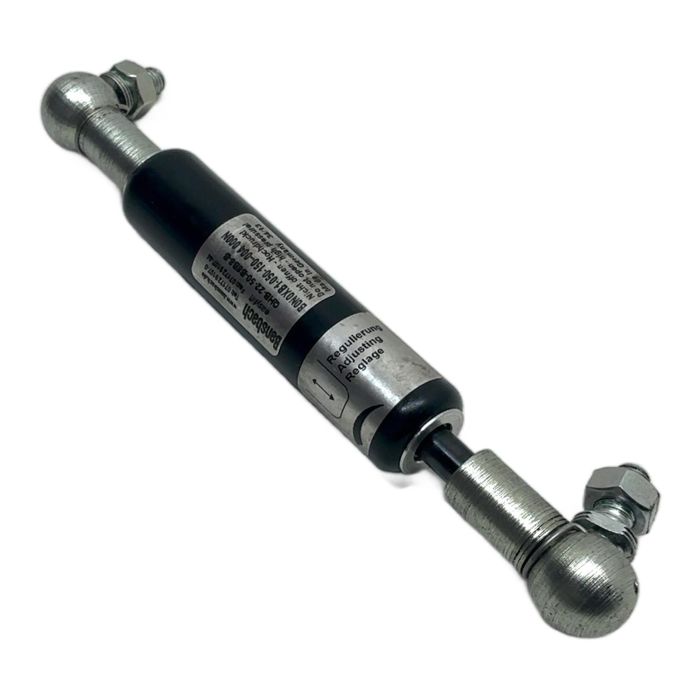

Bansbach easylift Adjustable Hydraulic Damper

Description

This is a high-quality, adjustable hydraulic damper from the Bansbach easylift series, model QHB-22-50-B8B8-B. Engineered in Germany, it provides reliable and precise motion control, ideal for applications requiring controlled velocity and smooth deceleration. Its adjustable feature allows for fine-tuning the damping force to perfectly match the application's needs. The damper is equipped with M8 ball joints on both ends for easy installation and alignment.

Specifications

• Manufacturer: Bansbach
• Product Line: easylift
• Type: Adjustable Hydraulic Damper
• Model: QHB-22-50-B8B8-B
• Part Number: B0N0XB1-050-150-004
• Stroke: 50 mm
• Extended Length: 150 mm
• Cylinder Diameter: 22 mm
• End Fittings: B8 Ball Joints (M8 thread)

Label Info

• Date of Manufacture: Week 34, 2013
• Warning: Do not open - High pressure!

Application

Suitable for a wide range of industrial applications including machine guards, lids, flaps, automation equipment, and conveyor systems where controlled motion is critical.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are contributing to the circular economy and avoiding the CO2 emissions of new production, estimated at 0.6 kg. This saving is comparable to avoiding a 3 km car drive.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
How do I adjust the damping force on this QHB-22-50 damper?

The damping force is adjusted by turning the adjustment knob located on the piston rod. Turning it in one direction increases resistance, while turning it in the other decreases it, allowing for precise control in the field.

Question?
What do the B8B8-B designations in the model number signify?

B8B8 indicates that the damper is fitted with B8 style ball joints on both the piston and cylinder ends. These typically have an M8 thread. The final '-B' may denote a specific bill-of-materials or revision by the manufacturer.

Question?
Is this damper suitable for use in a compression or extension application?

Hydraulic dampers can be configured to provide damping on compression, extension, or both. The specific behavior is determined by the internal valving, defined by the full part number. You should verify its damping direction to ensure it matches your application's requirements.
