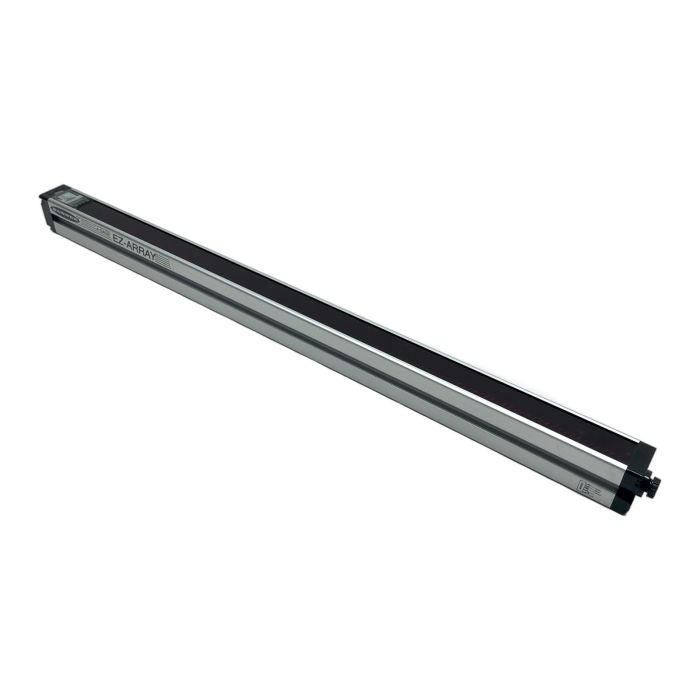

Banner EZ-ARRAY Measuring Light Curtain Receiver EASR600PIXMODQ

Description

The Banner EASR600PIXMODQ is a high-performance measuring light curtain receiver from the EZ-ARRAY series. It is engineered for a wide range of industrial automation applications requiring precise measurement, profiling, and object detection. This receiver, when paired with a corresponding emitter, creates a dense infrared light field over a 600 mm height. It features integrated RS-485 Modbus RTU communication, allowing for detailed data acquisition and easy integration with PLCs and other control systems. Please note, this device is intended for measurement and detection, and is not a safety-rated product.

Specifications

• Manufacturer: Banner Engineering
• Series: A-GAGE EZ-ARRAY
• Model: EASR600PIXMODQ
• Product Type: Measuring Light Curtain Receiver
• Defined Area Height: 600 mm
• Beam Spacing: 5 mm
• Sensing Range: Up to 4 m
• Communication: RS-485 Modbus RTU
• Outputs: 2x PNP
• Supply Voltage: 12 to 30V DC
• Connection: 8-pin M12 Pico-style Quick Disconnect (QD)

Label Info

• Model: EASR600PIXMODQ
• Part Number: 131151
• EID: 30131151

Application

This measuring light curtain is ideal for applications such as object profiling, parts counting, edge and center guiding, hole detection, and precise dimensional analysis on conveyor systems.

CO2 Impact

Choosing this refurbished Banner light curtain over a new one prevents the emission of approximately 20.4 kg of CO2. This saving is equivalent to the emissions produced by driving an average car for more than 100 kilometers, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this a safety-rated device?

No, the manufacturer explicitly states on the label that the EZ-ARRAY is NOT a safety device. It should not be used for personal protection or machine guarding applications. For safety applications, Banner offers dedicated safety light curtains.

This is the receiver unit (EASR...). It requires a matching EZ-ARRAY emitter unit, specifically the EAE600-600, to function correctly. Both units must be properly aligned to create the measurement field.

The sensor uses RS-485 for Modbus RTU communication. You will need a Modbus master, such as a PLC or a PC with an RS-485 interface. The sensor's datasheet provides the full Modbus register map, which details how to read beam status, measurement values, and configure device parameters.
