Balluff Micropulse Linear Position Sensor with 560mm Stroke

Description

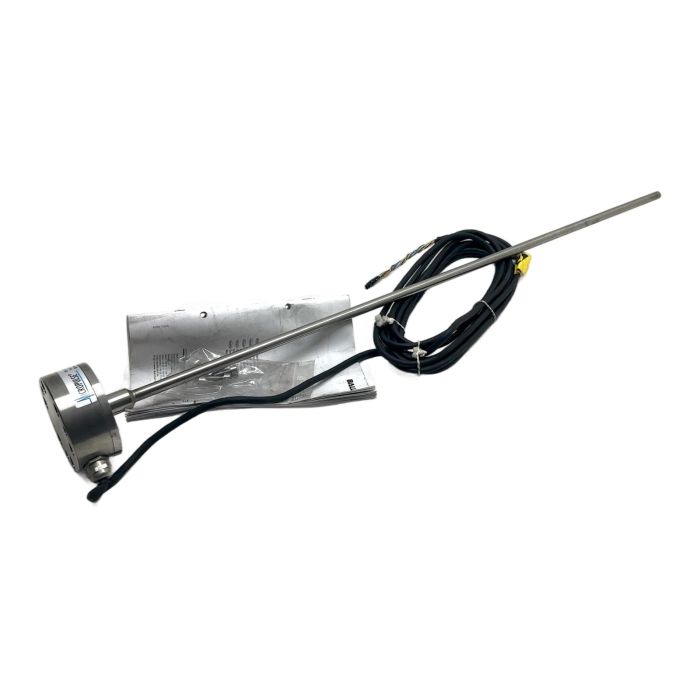

The Balluff BTL5-D512-M0560-A-N05 is a high-performance magnetostrictive linear position sensor from the renowned Micropulse series. It is engineered for non-contact and wear-free operation, delivering precise and absolute position measurement in challenging industrial environments. Its rod-style design is ideal for integration into hydraulic cylinders and other machinery requiring accurate feedback. This sensor ensures high reliability and a long service life.

Specifications

• Manufacturer: Balluff
• Model: BTL5-D512-M0560-A-N05
• Product Series: Micropulse BTL5
• Measurement Principle: Magnetostrictive
• Stroke Length: 560 mm
• Output Signal: Digital Start/Stop
• Resolution: 10 micrometers
• Supply Voltage: 20-28V DC
• Housing Material: Stainless Steel
• Connection: 5 meter cable, flying leads

Label Info

• Brand: Micropulse (by Balluff)
• Type: BTL5-D512-M0560-A-N05
• Spec: 10 um / 24 V

Application

This sensor is commonly used in applications such as plastics processing machinery, metal forming, machine tools, hydraulic presses, and automated assembly lines where precise linear position control is critical.

Country of Origin

This product is typically manufactured in Germany.

CO2 Impact

Opting for a reconditioned sensor like this one prevents the emission of approximately 60 kg of CO2 compared to manufacturing a new one. This saving is equivalent to driving 300 km in a typical car.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
How do I mount the magnet for this BTL5 rod-style transducer?

Answer

For a rod-style sensor, a position magnet is required. This magnet is typically mounted to the moving part of the machine (e.g., the piston head inside a cylinder) and travels along the sensor rod without direct contact. Balluff offers various ring and U-magnets designed for different applications.

Question?
What is the output signal type for the 'D' interface in the model number?

Answer

The 'D' in the model number designates a digital Start/Stop interface. This is a time-based output protocol where the sensor sends out start and stop pulses, and the time difference between them is proportional to the magnet's position. This requires a controller with a compatible interface card to interpret the signal.

Question?
Can the 5-meter cable on this sensor be shortened or extended?

Answer

While it is technically possible to shorten the cable, it is not recommended to extend it. Extending the cable can introduce signal noise and timing issues, potentially affecting the accuracy of the measurement. If a longer cable is needed, it is best to order a sensor with the required length from the manufacturer.
