Balluff BTL5 Micropulse Linear Position Sensor

Description

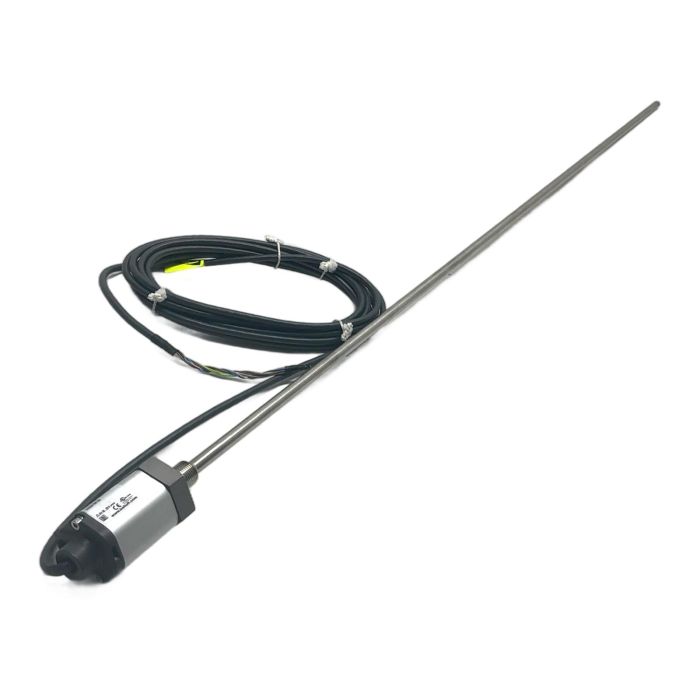

The Balluff BTL5-S113-M1050-B-KA05 is a high-performance magnetostrictive linear position transducer designed for accurate and reliable measurement in industrial environments. Its non-contact working principle ensures a long service life with minimal wear. This model provides an absolute position output via a Synchronous Serial Interface (SSI), making it ideal for applications requiring precise feedback, such as in hydraulic cylinders, injection molding machines, and other automated equipment. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Balluff
• Series: Micropulse BTL5
• Type Number: BTL5-S113-M1050-B-KA05
• Measuring Length: 1050 mm
• Interface: SSI (Synchronous Serial Interface)
• Resolution: 10 um
• Output Format: 24-bit Gray code, rising
• Supply Voltage: 20 to 28 V DC
• Connection: 5-meter cable with unterminated ends
• Protection Class: IP67 (when installed with appropriate mating connector/gland)

Label Info

• Model: BTL0H0N
• Full Part Number: BTL5-S113-M1050-B-KA05
• Specs: 10 um / 24 bit / Gray rising
• Voltage: Ub 20...28 V

Application

This sensor is perfectly suited for continuous position monitoring in factory automation, fluid power, and process technology. Its robust rod-style construction allows for direct integration into hydraulic cylinders for precise piston position feedback.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid the emission of approximately 18 kg of CO2, which is equivalent to the savings from charging 2160 smartphones.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

What is the required magnet for this BTL5 transducer?

This transducer requires a separate position magnet, typically a floating or ring magnet, to be installed on the moving part of the machine. The specific magnet model (e.g., BTL-P-...) depends on the application and mounting requirements.

'Gray code' is a binary numeral system where two successive values differ in only one bit, which prevents errors during signal transition. 'Rising' indicates that the position value increases as the magnet moves away from the transducer's electronics head.

While extending the cable is physically possible, it is generally not recommended for SSI interfaces as it can degrade signal integrity, especially at high transmission speeds. If an extension is necessary, use high-quality shielded cable and consult Balluff's technical documentation to avoid data corruption.
