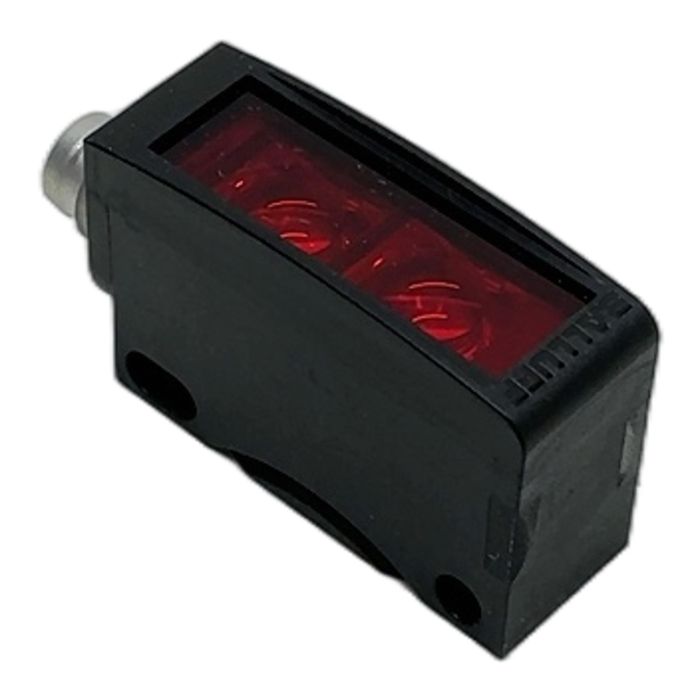

Balluff BOS01MF Photoelectric Sensor

Description

The Balluff BOS01MF is a versatile retroreflective photoelectric sensor from the BOS 6K series, engineered for demanding industrial applications. It provides reliable object detection over a long range of up to 13 meters. With its robust housing and IP67 protection rating, this sensor is built to withstand harsh environments. The selectable PNP/NPN output and standard M12 connector ensure flexible and straightforward integration into existing control systems.

Specifications

• Manufacturer: Balluff
• Order Code: BOS01MF
• Type Number: BOS 6K-XT-RS10-S49
• Principle of Operation: Retroreflective sensor
• Sensing Range (Sn): 0...13 m (with appropriate reflector)
• Operating Voltage: 10...30V DC
• Switching Output: PNP/NPN, selectable
• Connection: M12x1 connector, 4-pin
• Light Type: Red light
• Protection Class: IP67

Application

Ideal for use in logistics, packaging machinery, assembly lines, and material handling systems where reliable long-distance presence detection is critical.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this component saves approximately 3.0 kg of CO2 compared to a new one, contributing to a more sustainable operation.

Availability

Available from stock for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

To achieve the maximum 13-meter range, Balluff recommends using a high-quality prismatic reflector, such as their BAE R-10 model or equivalent.

This sensor features a universal output. The output type (PNP or NPN) is determined by how you wire the load. Refer to the official datasheet for the correct wiring diagram for your application.

Yes, it uses a standard 4-pin M12 A-coded pinout. Typically, pin 1 is +V, pin 3 is GND, and pin 4 is the switching output. Pin 2 may be used for configuration depending on the specific model variant.
