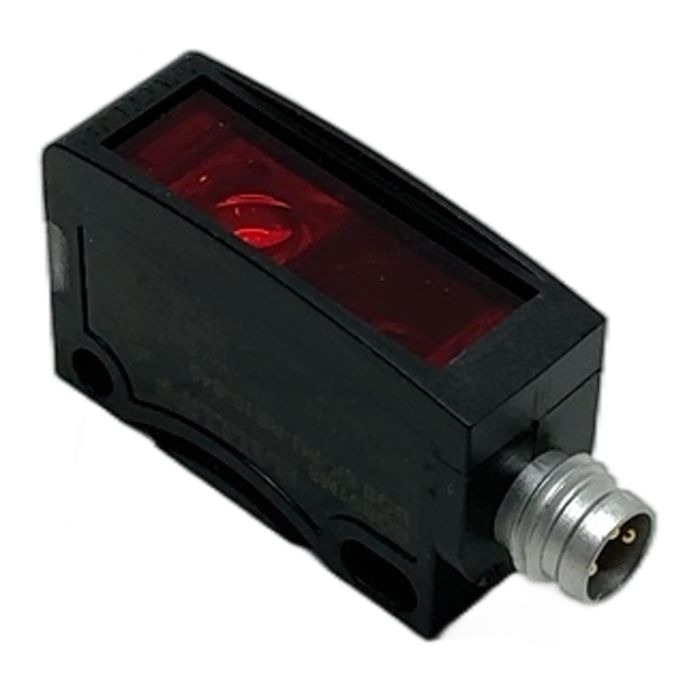

Balluff BOS01M8 Photoelectric Sensor with Background Suppression

Description

The Balluff BOS01M8 is a versatile photoelectric sensor from the BOS 6K series, engineered for precise object detection in a wide range of industrial applications. It operates on a diffuse sensing principle with background suppression, allowing it to reliably detect objects regardless of their color or the reflectivity of the background. With a sensing range of up to 1.5 meters and a switchable PNP output, this sensor provides flexibility and high performance in a compact housing. Its M8 connector ensures quick and easy installation. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Balluff
• Model: BOS01M8
• Type: BOS 6K-PU-RE10-S49
• Principle of Operation: Diffuse sensor with background suppression
• Sensing Range (Sn): 0 to 1500 mm (1.5 m)
• Operating Voltage: 10 to 30V DC
• Output Type: PNP, switchable Normally Open/Normally Closed (NO/NC)
• Connection: M8x1-Connector, 4-pin
• Light Type: Red light
• Housing Material: ABS
• IP Rating: IP67

Label Info

• Brand: BALLUFF
• Order Code: BOS01M8
• Full Type: BOS 6K-PU-RE10-S49

Application

This sensor is ideally suited for object detection tasks in conveyor systems, packaging machinery, assembly lines, and general material handling automation.

Country of Origin

Germany

CO2 Impact

Opting for this pre-owned sensor saves approximately 1.0 kg of CO2 compared to a new purchase. This is equivalent to the emissions from driving a car for 5 km.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

Question?
How do I adjust the sensitivity or switch between NO/NC mode on the BOS01M8?

Answer

The sensor is configured using its teach-in button. A short press adjusts the switching distance, while a longer press can toggle the output function between Normally Open (NO) and Normally Closed (NC). Always consult the official datasheet for the exact procedure.

Answer

Background suppression (BGS) allows the sensor to detect an object at a set distance while ignoring any objects or surfaces in the background, even if they are more reflective. This makes BGS sensors highly reliable for detecting objects with varying colors and textures on conveyor belts or in front of complex machinery.

Answer

For this Balluff sensor, the typical pinout is: Pin 1 for Power (+V, 10-30V DC), Pin 3 for Ground (GND), Pin 4 for the PNP Output, and Pin 2 for the external teach-in input. It is crucial to verify this against the manufacturer's datasheet before wiring.
