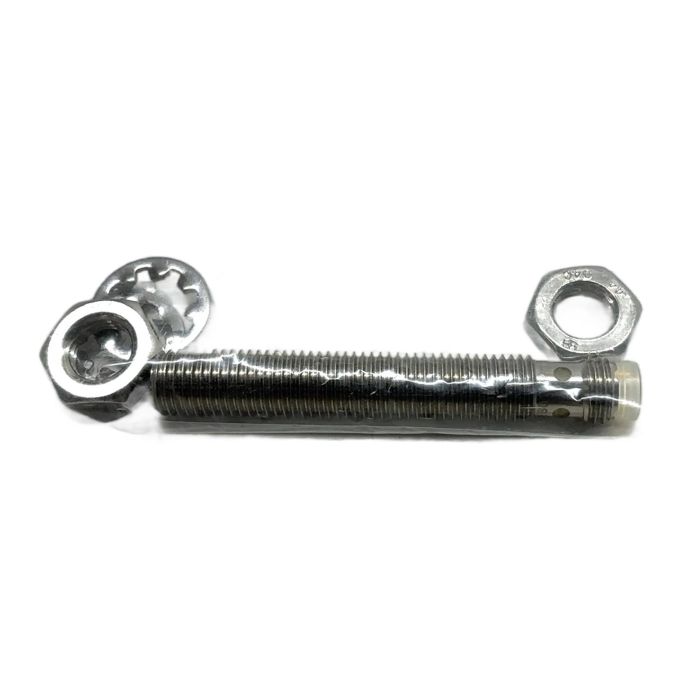

Balluff Inductive Sensor BES01LP

Description

The Balluff BES01LP, with part number BES 516-377-G-S49-C, is a high-performance inductive proximity sensor designed for non-contact detection of metallic objects in industrial environments. Its compact M8 threaded housing allows for easy installation in tight spaces. This sensor provides a reliable PNP normally closed output, making it a staple in factory automation for position sensing, counting, and control tasks.

Specifications

• Manufacturer: Balluff
• Model: BES01LP
• Part Number: BES 516-377-G-S49-C
• Operating Voltage: 10-30V DC
• Sensing Distance (Sn): 2.0 mm
• Output Type: PNP
• Switching Function: Normally Closed (NC)
• Max Output Current: 200 mA
• Housing Size: M8 x 1
• Installation: Flush mountable

Label Info

• IND. CONT. EQ. 81U2
• cULus Listed
• CE and EAC certified

Application

This sensor is ideal for applications in manufacturing, packaging, and material handling systems where precise and reliable detection of metal parts is crucial for machine operation.

Country of Origin

This product is manufactured in China.

CO2 Impact

Opting for this component helps avoid the emission of approximately 0.6 kg of CO2 compared to manufacturing a new one. This saving is comparable to driving a car for 3 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The housing is made of nickel-plated brass, providing durability and resistance to harsh industrial environments.

This sensor has a maximum switching frequency of 1500 Hz, making it suitable for high-speed applications.

Yes, the BES 516-377-G-S49-C is designed for flush installation, which means the sensing face can be mounted level with the surrounding metal surface without affecting its performance.
