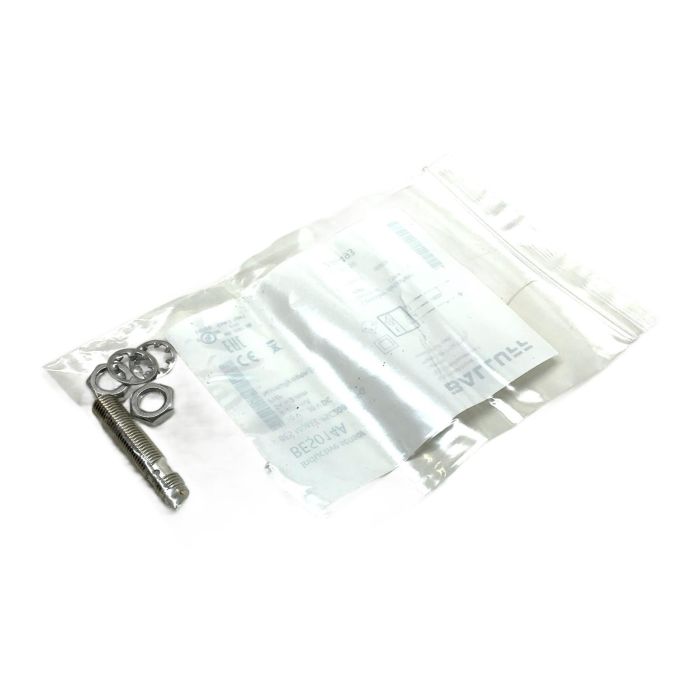

Product Details for Balluff BES014A

Description

The Balluff BES014A is a compact and reliable inductive sensor designed for non-contact detection of metallic objects in industrial automation. Its M8 threaded body made of stainless steel ensures durability in harsh environments. This sensor operates with a PNP normally open output and has a sensing distance of 2 mm, making it ideal for precise positioning and control tasks.

Specifications

• Manufacturer: Balluff
• Order Code: BES014A
• Full Type Number: BES M08EE-PSC20B-S49G
• Sensing Distance (Sn): 2 mm
• Operating Voltage: 10 to 30 V DC
• Output Type: PNP, Normally Open (NO)
• Current Rating: <= 200 mA
• Housing Size: M8 x 1
• Housing Material: Stainless Steel
• Connection: M8 Male Connector, 3-pin
• IP Rating: IP67
• Mounting: Flush mountable

Label Info

• Inductive sensor BES014A
• BES M08EE-PSC20B-S49G
• 10 V...30 V DC
• <= 200 mA
• Sn = 2 mm
• PNP Normally open (NO)

Application

This sensor is commonly used in factory automation, packaging machinery, assembly lines, and robotics for tasks such as presence detection, counting, and positioning of machine parts.

Country of Origin

This product is manufactured in China.

CO2 Impact

Opting for this reused component prevents approximately 1.2 kg of CO2 emissions compared to manufacturing a new one. This saving is equivalent to the emissions from driving a standard car for 6.0 kilometers.

Availability

This item is in stock and ready for immediate dispatch. It is a new product in its original, sealed packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the IP rating of the BES014A sensor?

The datasheet confirms an IP67 rating, making it dust-tight and protected against temporary immersion in water, ensuring reliability in wet or dusty conditions.

The BES M08EE-PSC20B-S49G is a flush-mountable sensor, which means the sensing face can be installed level with the surrounding metal without affecting its performance.

In Balluff's naming convention, 'S49G' indicates the connector type. For this model, it specifies a standard M8x1 male connector with 3 pins, a common interface for sensors of this size.
