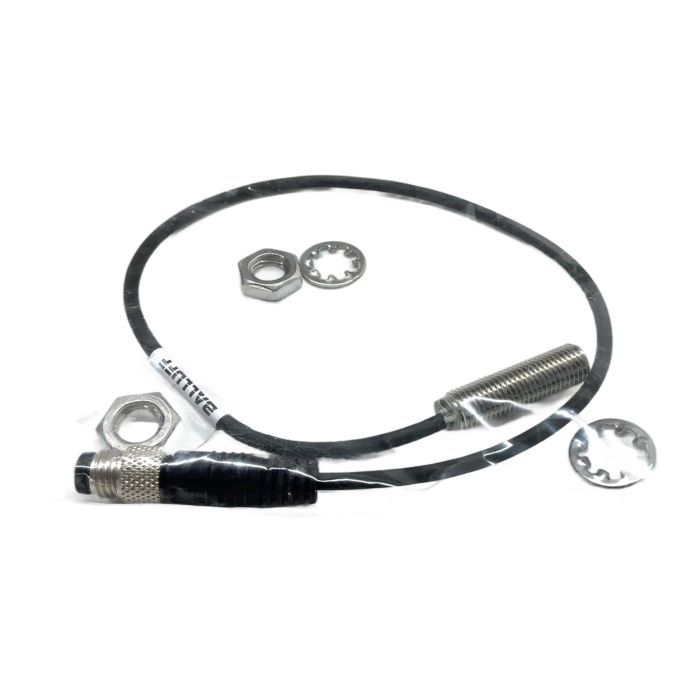

Balluff Inductive Sensor M5 2mm BES0112

Description

The Balluff BES0112 is a compact and reliable inductive sensor designed for precise detection of metal objects in automated systems. Featuring a rugged M5 stainless steel housing, it is built to withstand demanding industrial environments. This sensor is ideal for applications requiring accurate positioning, counting, or presence detection where space is a critical factor.

Specifications

• Model: BES0112
• Full Part Number: BES 516-377-G-E4-C-S49-00,3
• Sensing Principle: Inductive
• Sensing Range (Sn): 2 mm
• Housing Size: M5 x 0.5
• Operating Voltage: 10 to 30 V DC
• Output Type: PNP
• Switching Function: Normally Closed (NC)
• Connection: M8x1-Male connector, 3-pin
• Housing Material: Stainless Steel

Label Info

• Rated operational current: < 200 mA
• Certifications: CE, EAC, cULus Listed

Application

This sensor is commonly used in factory automation, packaging machinery, assembly lines, and robotics for tasks such as part detection, end-of-travel sensing, and speed monitoring on metallic gears.

Country of Origin

Made in China.

CO2 Impact

By purchasing this reused item, you contribute to a circular economy and help avoid 1.0 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The housing is made of high-grade stainless steel, making it robust and resistant to corrosion. It is well-suited for typical industrial environments, but for applications with aggressive chemicals or high-pressure washdowns, you should verify its IP rating and chemical compatibility.

The S49 code in Balluff's nomenclature specifies a 3-pin M8x1 male connector. This is a common standard for compact sensors, ensuring broad compatibility with standard industrial cables.

This sensor has a PNP (sourcing) output. To connect it to an NPN (sinking) PLC input, you would typically need to use a pull-down resistor between the signal line and ground (0V). However, it is always recommended to use a sensor with an output type that matches your PLC's input type for the most reliable operation.
