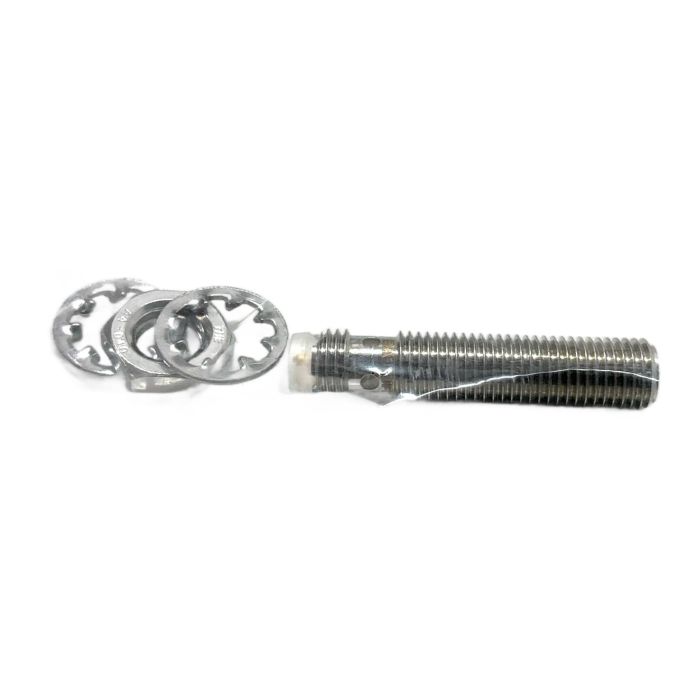

Balluff BES00CJ Inductive Sensor

Description

The Balluff BES00CJ (BES M08EE-PSC15B-S49G-003) is a high-quality inductive proximity sensor designed for detecting metallic objects in industrial automation environments. Part of the reliable Global series, it features a robust M8 stainless steel housing, making it suitable for demanding conditions. This sensor provides a precise sensing distance of 1.5 mm and is flush-mountable for easy and protected installation.

Specifications

• Manufacturer: Balluff
• Model: BES00CJ
• Full Type: BES M08EE-PSC15B-S49G-003
• Sensing Distance (Sn): 1.5 mm
• Housing Size: M8 x 1
• Mounting: Flush mountable
• Output Type: PNP
• Switching Function: Normally Open (NO)
• Operating Voltage: 10 to 30V DC
• Connection: M8 male connector, 3-pin
• Housing Material: Stainless steel
• Protection Class: IP67

Label Info

• Order Code: BES00CJ
• Part Number: 07361891 / 246501

Application

This sensor is commonly used for presence detection, positioning, and counting tasks in machinery, conveyor systems, and assembly lines where reliable detection of metal parts is crucial.

Country of Origin

Made in China.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and avoiding approximately 1.0 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Flush mountable means the sensor can be installed so its sensing face is level with the surrounding metal mounting surface without affecting its performance. This is ideal for applications where the sensor needs to be protected or space is limited.

For this Balluff PNP sensor, the standard M8 3-pin pinout is typically: Pin 1 for positive supply (10-30V DC), Pin 3 for ground (0V), and Pin 4 for the signal output. Pin 2 is usually not connected. Always verify with the official datasheet before wiring.

No, not directly. This sensor has a PNP (sourcing) output, which provides a positive voltage signal. An NPN (sinking) input expects to be connected to ground. To use this sensor with an NPN input, you would need an intermediary device like a signal converter or a relay with a suitable coil voltage.
