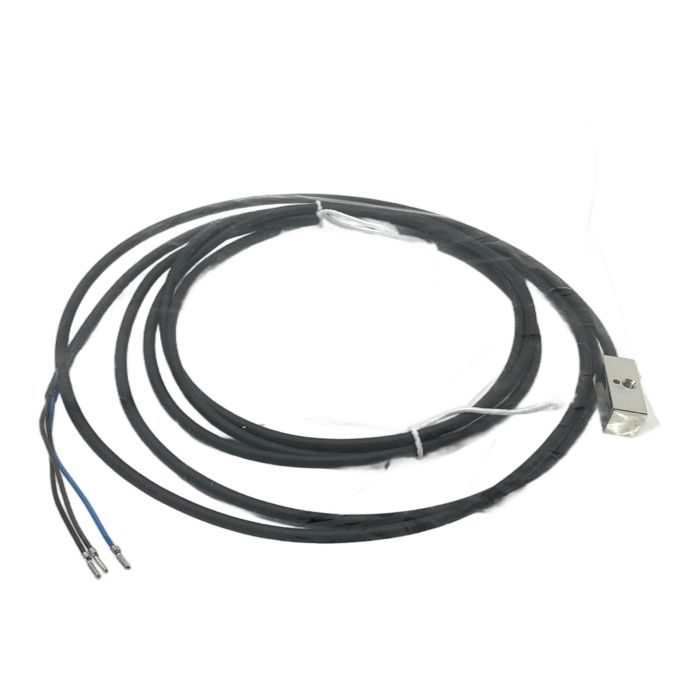

Balluff BES03U2 Inductive Sensor

Description

The Balluff BES03U2 is a high-performance inductive proximity sensor designed for industrial automation. With its compact rectangular Q08 housing, it is ideal for applications where space is limited. This sensor provides reliable non-contact detection of metallic objects with a sensing distance of 2 mm. It operates on a wide voltage range of 10-30V DC and features a standard PNP normally open (NO) output, making it compatible with most PLC systems.

Specifications

• Manufacturer: Balluff
• Type Number: BES Q08MEC-PSC20B-EP02
• Order Code: BES03U2
• Sensing Principle: Inductive
• Sensing Distance (Sn): 2 mm
• Operating Voltage: 10 to 30V DC
• Switching Output: PNP
• Switching Function: Normally Open (NO)
• Output Current: <= 200 mA
• Housing: Rectangular, Q08
• Mounting: Flush mountable
• Connection: Cable with flying leads

Label Info

• Model: BES03U2 / BES Q08MEC-PSC20B-EP02
• P/N: 215941

Application

This sensor is commonly used for presence detection, positioning, and counting tasks in packaging machinery, assembly lines, and material handling systems.

Country of Origin

This product is manufactured in China.

CO2 Impact

By purchasing this reused item, you contribute to a circular economy and help avoid approximately 3.0 kg of CO2 emissions associated with the production of a new unit. This is comparable to the emissions of a 15 km car ride.

Availability

This item is in stock and ready for immediate dispatch. It is new old stock, in its original sealed packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does "flush mountable" mean for this BES03U2 sensor?

Flush mountable means the sensing face of the BES03U2 can be installed level with the surrounding metal mounting surface without affecting its performance. This is ideal for applications where the sensor needs to be embedded or protected.

A PNP (sourcing) output sensor is commonly used in control systems with PLC inputs that sink current, which is the standard in Europe and many other regions. It sources a positive voltage to the load (e.g., a PLC input) when an object is detected, making it compatible with a wide range of industrial controllers.

The Balluff BES Q08MEC-PSC20B-EP02 has an IP67 rating according to its datasheet. The '6' indicates it is completely dust-tight, and the '7' signifies it is protected against the effects of temporary immersion in water up to 1 meter for 30 minutes, ensuring high reliability in harsh industrial environments.
