Balluff Inductive Proximity Sensor

Description

The Balluff BES013L (BES M08EC-POC20B-S49G) is a high-quality inductive sensor designed for reliable detection of metallic objects in industrial environments. It features a robust M8 threaded housing, making it easy to install in tight spaces. With a sensing distance of 2 mm and a PNP normally closed output, it is suitable for a variety of presence sensing and positioning applications. This sensor operates on a wide voltage range of 10 to 30 V DC and connects via a standard M8 3-pin connector.

Specifications

• Manufacturer: Balluff
• Type: Inductive Proximity Sensor
• Model: BES M08EC-POC20B-S49G
• Order Code: BES013L
• Sensing Distance (Sn): 2 mm
• Housing: M8x1, flush mountable
• Output Type: PNP, Normally Closed (NC)
• Operating Voltage: 10...30 V DC
• Rated Operating Current: 200 mA
• Connection: M8x1-Male connector, 3-pin

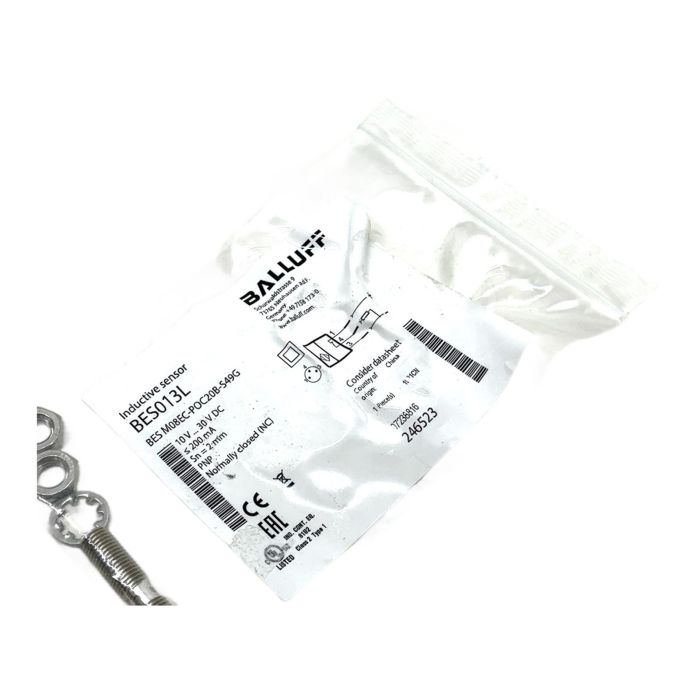

Label Info

• Inductive sensor
• BES013L
• BES M08EC-POC20B-S49G
• 10 V... 30 V DC
• <= 200 mA
• Sn = 2 mm
• PNP Normally closed (NC)

Application

Ideal for use in factory automation, packaging machinery, material handling systems, and assembly lines for detecting the presence of metal parts, components, and machine elements.

Country of Origin

This product is made in China.

CO2 Impact

By purchasing this surplus item, you contribute to a circular economy and help avoid 0.8 kg of CO2 emissions that would be generated from manufacturing a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Flush mountable, or embeddable, means the sensing face of the sensor can be installed level with the surrounding metal surface without affecting its performance or sensing distance. This is ideal for installations where the sensor needs to be protected or space is limited.

For this Balluff sensor, the standard M8 3-pin PNP wiring applies. Pin 1 (brown wire) is for the positive supply (+V, 10-30 V DC), Pin 3 (blue wire) is for the ground (0V), and Pin 4 (black wire) is the signal output. Pin 2 is typically not used. Always verify with the official datasheet before installation.

Yes, as an inductive sensor, it can detect all metals. However, the nominal sensing distance (Sn) of 2 mm is specified for a standard steel target. For non-ferrous metals like aluminum or copper, a reduction factor applies, meaning the actual sensing distance will be shorter. Refer to the Balluff datasheet for specific reduction factors for different materials.
