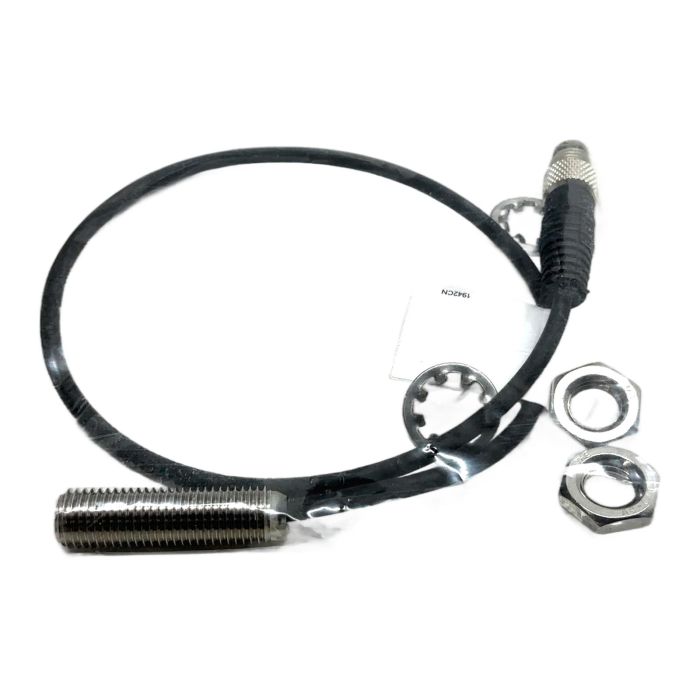

Balluff Inductive Sensor with M12 Connector

Description

The Balluff BES 516-324-G-E4-C-S49-00,3 is a high-quality inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation. Its standard M12 threaded housing allows for easy and flexible mounting. This sensor provides a reliable PNP normally open output and is built to withstand harsh industrial environments.

Specifications

• Manufacturer: Balluff
• Part Number: BES 516-324-G-E4-C-S49-00,3
• Article Number: BES00P4
• Order Code: 247278
• Housing: M12 x 1
• Sensing Range (Sn): 2 mm
• Installation Type: Flush mountable
• Operating Voltage: 10 to 30V DC
• Switching Output: PNP, Normally Open (NO)
• Rated Operating Current: 200 mA
• Connection: 0.3m cable with M12 male connector, 4-pin, A-coded
• Housing Material: Brass, nickel-plated
• IP Rating: IP68

Label Info

• Inductive sensor
• BES00P4
• 10 V... 30 V DC
• Sn = 2 mm
• PNP Normally open (NO)

Application

This sensor is ideal for applications in factory automation, packaging machinery, assembly lines, and material handling systems where precise position sensing of metal parts is required.

Country of Origin

China

CO2 Impact

By choosing this refurbished or surplus sensor, you are contributing to a circular economy and avoiding 2.0 kg of CO2 emissions associated with the production of a new one. This saving is equivalent to the emissions from driving a standard car for 10 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the IP rating of this sensor?

This sensor has an IP68 rating, which means it is fully protected against dust ingress and can withstand long periods of immersion under pressure, making it suitable for washdown applications.

Is this sensor flush-mountable?

Yes, the BES 516-324-G-E4-C-S49-00,3 is designed for flush mounting, allowing it to be installed level with the mounting surface without affecting its sensing performance.

What is the maximum switching frequency of this sensor?

The datasheet specifies a maximum switching frequency of 1500 Hz, enabling it to detect fast-moving objects reliably.
