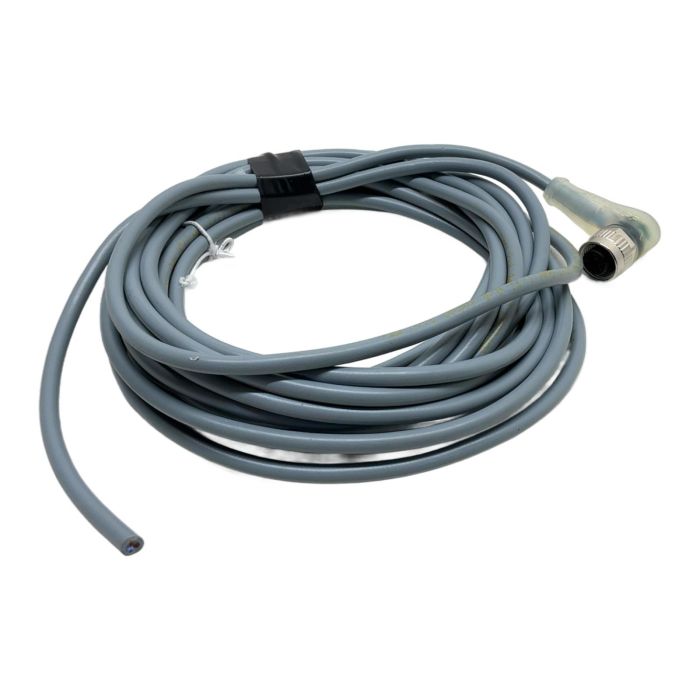

Balluff BCC034U M12 Sensor/Actuator Cable Assembly

Description

This is a high-quality M12 connector cable from Balluff, part number BCC M425-0000-1A-004-VX8334-050. With a length of 5 meters and a rugged PUR jacket, this cable is designed for reliable performance in demanding industrial settings. It features an angled, 3-pin female M12 connector on one end and flying leads on the other, providing flexible connection options for sensors, actuators, and other automation components.

Specifications

• Manufacturer: Balluff
• Type: BCC034U
• Part Number: BCC M425-0000-1A-004-VX8334-050
• Connector Type: M12 Female, Angled
• Number of Pins: 3
• Coding: A-coded
• Cable Length: 5.0 meters
• Cable Jacket Material: PUR (Polyurethane), Grey
• Number of Conductors: 3 x 0.34 mm2
• Rated Voltage: 250 V AC/DC
• Current Rating: 4.0 A
• Protection Rating: IP68 (when connected)

Application

Ideal for connecting sensors and actuators in factory automation, robotics, material handling systems, and machine building. The PUR jacket makes it suitable for applications with motion, such as in drag chains, and where resistance to oil and chemicals is required.

Country of Origin

Germany

CO2 Impact

Choosing this reused Balluff cable instead of a new one prevents the emission of approximately 8.0 kg of CO2, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, the PUR (Polyurethane) jacket is specifically designed for high flexibility and resistance to torsion, making it ideal for continuous motion applications in drag chains.

A-coding is a standardized keying system for M12 connectors that prevents mismating. It is primarily used for sensors, DC power, and actuator connections, ensuring correct polarity and signal assignment.

Absolutely. The PUR cable jacket offers excellent resistance to industrial oils, coolants, and other chemical agents, ensuring long-term reliability in harsh machine environments.
