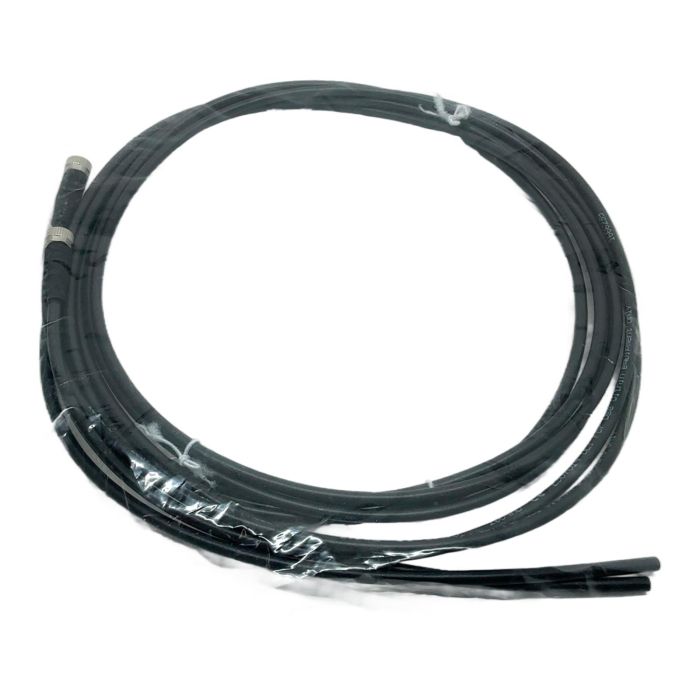

Balluff BCC02M8 Single-Ended M8 Sensor Cable, 2m

Description

The Balluff BCC02M8 is a high-quality, single-ended cordset designed for reliable connections in industrial automation environments. It features a standard M8 female connector and a 2-meter PUR cable with flying leads, providing flexibility for various sensor and actuator applications.

Specifications

• Manufacturer: Balluff
• Part Number: BCC M313-0000-10-001-PX0334-020
• Order Code: BCC02M8
• Connector Type: M8x1 Female, Straight
• Number of Pins: 3
• Coding: A-coded
• Cable Length: 2.0 meters
• Cable Jacket Material: PUR (Polyurethane), Black
• IP Rating: IP67 (when properly connected)
• Operating Voltage: up to 60V AC / 75V DC

Label Info

• Single-Ended Cordsets
• CE, cULus LISTED, EAC markings
• (CYJV CABLE ASSEMBLY)

Application

This cable is ideal for connecting sensors, actuators, and other components in machinery, robotics, and factory automation systems where a robust and reliable connection is essential.

Country of Origin

This product is made in Hungary.

CO2 Impact

By choosing this reused component, you are helping to avoid the production of a new one, saving an estimated 1.7 kg of CO2. This saving is comparable to the emissions from driving a standard car for over 8 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A-coding is a standardized keying system for circular connectors that prevents mismating. It is primarily used for sensors, actuators, and DC power applications, ensuring that only compatible plugs and receptacles can be connected.

Yes, Polyurethane (PUR) jackets are known for their excellent resistance to abrasion, oils, and many industrial chemicals, making this cable well-suited for harsh factory environments where such exposures are common.

According to the standard for 3-pin A-coded M8/M12 connectors, the colors are typically: Pin 1 (Brown) for +V, Pin 3 (Blue) for -V/GND, and Pin 4 (Black) for the signal wire. Always verify with the device's documentation before installation.
