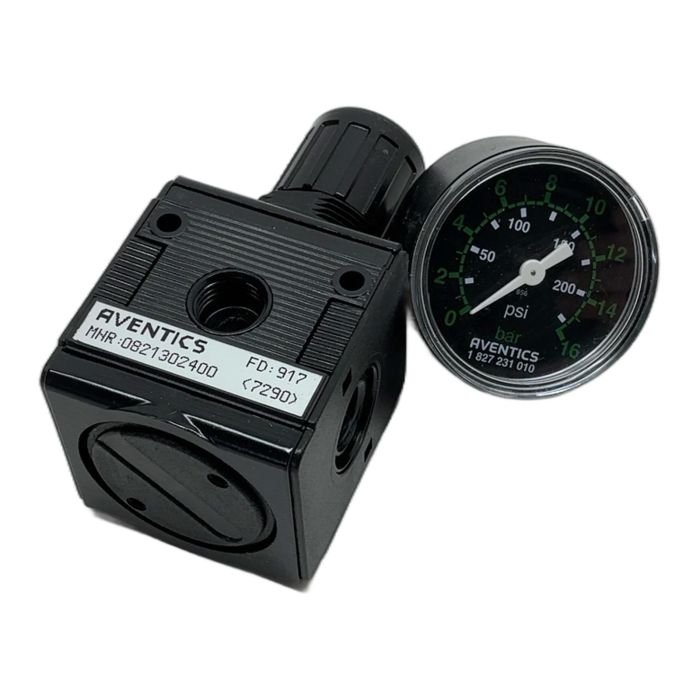

Aventics NL1 Series Pneumatic Pressure Regulator

Description

This Aventics pressure regulator, part number 0821302400, is a key component for any pneumatic system requiring precise and stable air pressure control. As part of the modular NL1 series, it is designed for reliability and ease of use. This unit is ideal for applications in industrial automation, machine building, and process control. It features a lockable knob to secure pressure settings and comes complete with a pressure gauge for immediate visual feedback.

Specifications

• Manufacturer: Aventics (Emerson)
• Series: NL1
• Part Number: 0821302400
• Function: Pressure Regulator
• Port Connection: G 1/8
• Pressure Regulation Range: 0.5 to 10 bar
• Maximum Inlet Pressure: 16 bar
• Flow Rate (Qn): 550 l/min
• Included Pressure Gauge: 0 - 16 bar / 0 - 230 psi
• Actuation: Mechanical, with lockable knob

Label Info

• Brand: AVENTICS
• MNR: 0821302400
• FD: 917

Application

Perfect for regulating compressed air for pneumatic cylinders, valves, and tools. Its compact and modular design allows for standalone use or integration into a complete FRL (Filter-Regulator-Lubricator) maintenance unit.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused component, you contribute to a circular economy and help save 3.0 kg of CO2 emissions compared to a new production. This is equivalent to the emissions from driving a car for 15 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
The included pressure gauge shows a range up to 16 bar, but the specifications state a regulation range of 0.5-10 bar. Why is there a difference?

This is common practice. The regulator's internal mechanism is designed and calibrated for optimal performance and longevity within the 0.5-10 bar range. A standard, more widely available pressure gauge with a higher range (0-16 bar) is used for cost-efficiency and to provide a safety margin for monitoring system pressure, even if it exceeds the intended regulation range. Always operate the regulator within its specified 10 bar limit.

Yes, the NL1 series is modular. This pressure regulator can be easily assembled into blocks with other NL1 series components, such as filters (F) and lubricators (L), to create a complete FRL (Filter-Regulator-Lubricator) unit. This requires the appropriate connection plates and assembly kits from the NL1 series.

The lockable knob is a safety and process control feature. Once you have set the desired output pressure, you can push the knob down to lock it in place. This prevents accidental or unauthorized changes to the pressure setting, which is crucial for maintaining consistent performance and safety in automated processes.
