Aventics MH1 Series Pressure Regulator 0821302400

Description

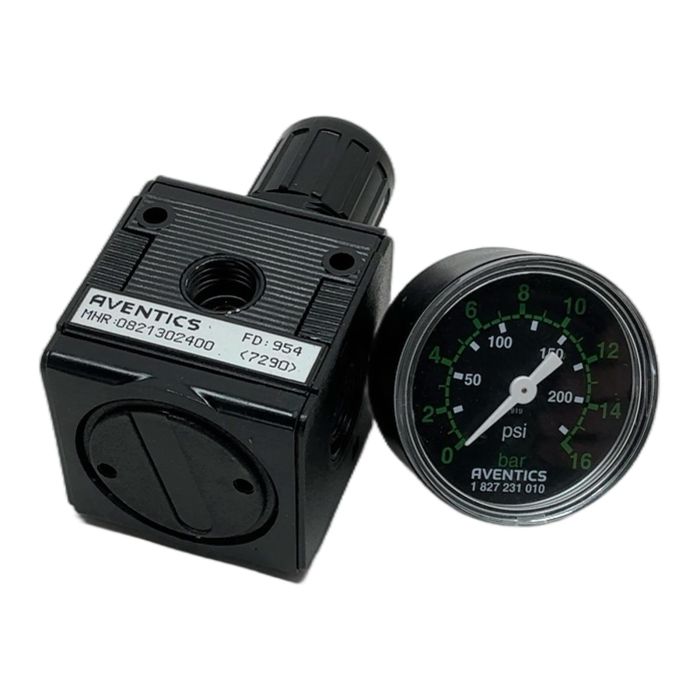

This is an Aventics pressure regulator, model 0821302400, from the reliable MH1 series. It is designed for precise pressure control in compressed air systems. The unit comes complete with a corresponding Aventics pressure gauge (0 to 16 bar / 0 to 230 psi), ensuring you have everything needed for immediate installation and monitoring. Its compact design and high flow rate make it suitable for a wide range of industrial applications.

Specifications

• Manufacturer: Aventics (Emerson)
• Part Number: 0821302400
• Series: MH1
• Port Connection: G 1/4
• Pressure Regulation Range: 0.5 to 10 bar
• Maximum Inlet Pressure: 16 bar
• Nominal Flow Rate: 1200 l/min
• Medium: Compressed Air
• Control: Lockable adjustment knob

Label Info

• Regulator MNR: 0821302400
• Gauge Part No: R412010583
• FD: 954

Application

Ideal for general automation, machine building, and process control where accurate and stable air pressure is critical for the performance of pneumatic cylinders, valves, and tools.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 6.0 kg of CO2 emissions compared to buying a new one. This saving is equivalent to the emissions from driving a standard car for 30 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The Aventics MH1 regulator can be mounted in any orientation without affecting its performance, offering flexibility in system design.

Yes, the MH1 series is designed to work with both non-lubricated and lubricated compressed air, provided the lubrication is continuous. The internal seals are compatible with common pneumatic lubricants.

Yes, this model features a lockable adjustment knob. You can secure the desired pressure setting by pushing the knob down, which prevents accidental or unauthorized changes.
