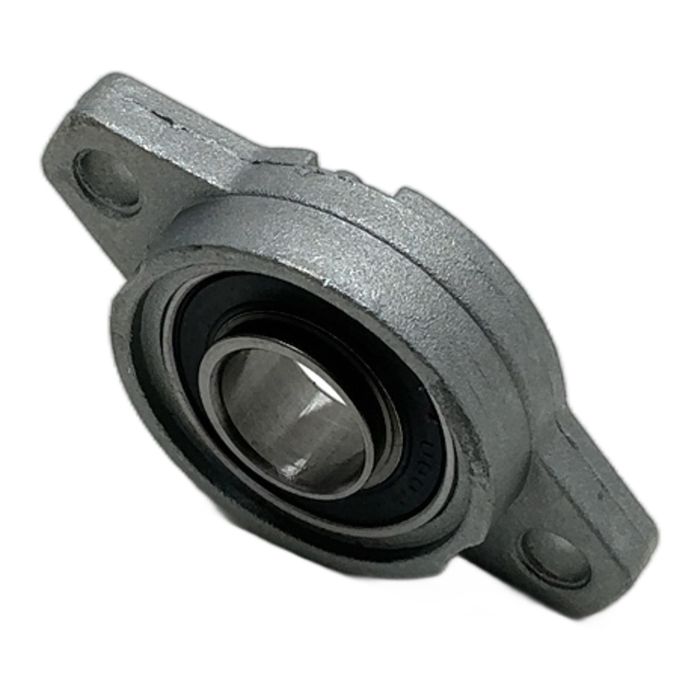

ASKUBAL UFL002 2-Bolt Flange Bearing Unit for 15mm Shafts

Description

The ASKUBAL UFL002 is a high-quality, lightweight 2-bolt flange bearing unit designed for reliable operation in a wide array of industrial applications. Featuring a durable zinc die-cast housing and a precision ball bearing insert, this unit is engineered for easy installation and long service life. Its self-aligning capability accommodates initial misalignments, ensuring smooth rotation for 15mm shafts. The bearing is securely locked to the shaft via two set screws.

Specifications

• Manufacturer: ASKUBAL
• Type: UFL002
• Bore Diameter: 15 mm
• Housing Type: 2-Bolt Oval Flange
• Housing Material: Zinc Die-Cast
• Bearing Insert: UC202 (or equivalent)
• Locking Mechanism: Set Screw Locking

Label Info

• Brand: ASKUBAL
• Model: UFL002
• Part Number: 508582

Application

This bearing unit is ideal for use in conveyor systems, packaging machinery, agricultural equipment, and general industrial automation where a compact and reliable bearing solution is required.

Country of Origin

This product is manufactured by ASKUBAL in Germany.

CO2 Impact

By purchasing this pre-owned item, you help avoid the production of a new one, saving approximately 0.3 kg of CO2. This saving is equivalent to charging a smartphone 36 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Zinc die-cast housings offer a good balance of strength, corrosion resistance, and light weight, making them ideal for applications in general machinery where massive cast iron housings are not required. They are also cost-effective.

The UFL002 features a two-bolt flange for easy mounting on a flat surface. The bearing insert has an extended inner ring with two set screws. After sliding the unit onto the 15mm shaft, these set screws should be tightened to the manufacturer's recommended torque to securely lock the bearing onto the shaft.

Yes, in most flange bearing units of this type, the bearing insert is a standard component and can be replaced if it wears out, without needing to replace the entire housing. However, for a unit of this size, it is often more economical to replace the complete unit.
