Ashcroft T5500 Stainless Steel Pressure Gauge

Description

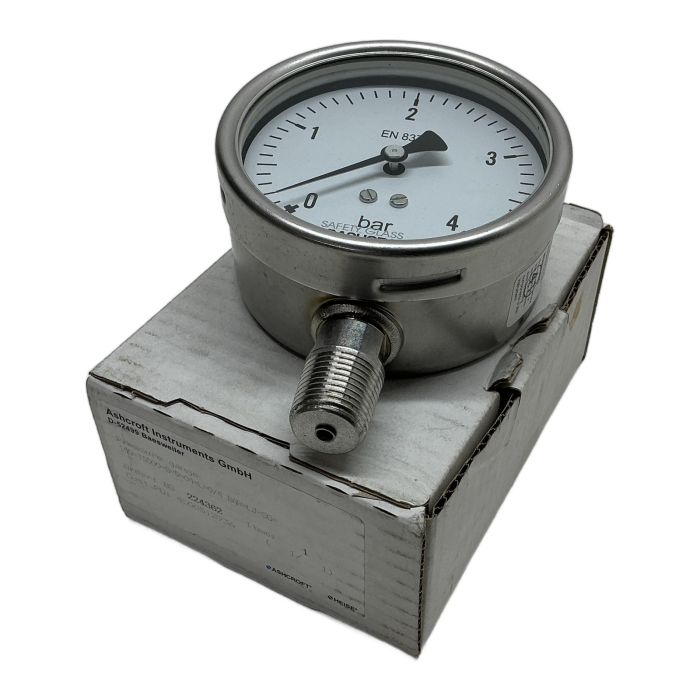

This is an Ashcroft T5500 series process pressure gauge, engineered for high performance and reliability in industrial environments. It features a robust all-stainless steel construction, making it ideal for monitoring pressure in systems with corrosive media or in harsh ambient conditions. With a clear 100mm dial and a range of 0 to 4 bar, it provides accurate readings conforming to EN 837-1 standards.

Specifications

• Manufacturer: Ashcroft
• Model Series: T5500
• Pressure Range: 0 to 4 bar
• Dial Size: 100 mm
• Connection Size: G1/4
• Connection Type: Lower Mount (Radial)
• Case Material: Stainless Steel
• Wetted Parts: 316L Stainless Steel Tube and Socket
• Window: Safety Glass
• Accuracy Class: Kl. 1.0

Label Info

• Part Number: 100-T5500-S-D-04-L=0/4 BAR-LJ-SG=
• Order Number: BS 224362

Application

Suitable for a wide range of applications including chemical processing, oil and gas, power generation, and water treatment plants where accurate pressure measurement of gases and liquids is critical.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reconditioned item, you are helping to avoid approximately 1.2 kg of CO2 emissions compared to a new production. This is equivalent to the CO2 absorbed by over 50 trees in a single day.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, the wetted parts, which are the components that come into contact with the process fluid, are made from 316L stainless steel. This material offers excellent resistance to a wide range of corrosive chemicals.

As a surplus industrial component, this gauge is sold as-is and does not come with a new calibration certificate. For applications requiring certified accuracy, we recommend having it calibrated by a certified metrology lab after purchase.

This is a dry gauge. While it is robustly constructed for industrial use, for applications with severe mechanical vibration or pressure pulsation, a liquid-filled gauge is typically recommended to dampen needle movement and protect the internal mechanism. An external pulsation dampener can also be used.
