Amphenol Tuchel C 164 R Angled Cable Connector

Description

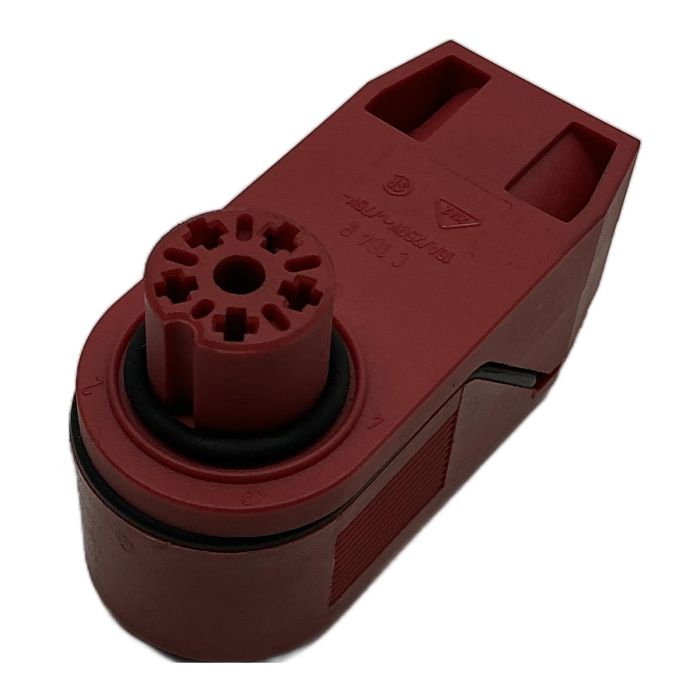

This is an angled female cable connector, model C 164 R, from Amphenol Tuchel. Part of the proven C16-1 / eco|mate series, this connector is designed for reliability in demanding industrial environments. It features a rugged, red housing made from glass-fiber reinforced polyamide and provides a secure 7-pin (6+PE) connection with screw terminals for straightforward wiring.

Specifications

• Manufacturer: Amphenol Tuchel
• Model: C 164 R
• Series: C16-1 / eco|mate
• Type: Angled Female Cable Connector (Socket)
• Number of Poles: 7 (6+PE)
• Termination Method: Screw Terminals
• Rated Voltage: 250V AC / 75V DC
• Rated Current: 15A
• Housing Material: Polyamide (PA6-GF25)

Application

Ideal for use in factory automation, machine building, process control, and other applications requiring a durable and secure power or signal connection. The 90-degree angled design is particularly useful in tight spaces.

Country of Origin

This product is manufactured in Germany.

CO2 Impact

By purchasing this reused component, you are helping to avoid the emission of approximately 2.4 kg of CO2, which is equivalent to driving a car for 12 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The screw terminals are designed for a wire cross-section of up to 1.5 mm squared (approx. 16 AWG). Always ensure a secure connection by using the appropriate wire size and tightening the screws to the manufacturer's specification.

When mated with a corresponding male connector and the cable gland is correctly tightened, connectors from the Amphenol C16-1 series typically achieve an IP67 rating, making them dust-tight and protected against temporary immersion in water.

This connector is designed as part of the Amphenol C16-1 / eco|mate series. While it may have similar dimensions to other industrial connectors, it is not guaranteed to be compatible or mate securely with connectors from other manufacturers. For safety and reliability, it is strongly recommended to use only corresponding Amphenol parts.
