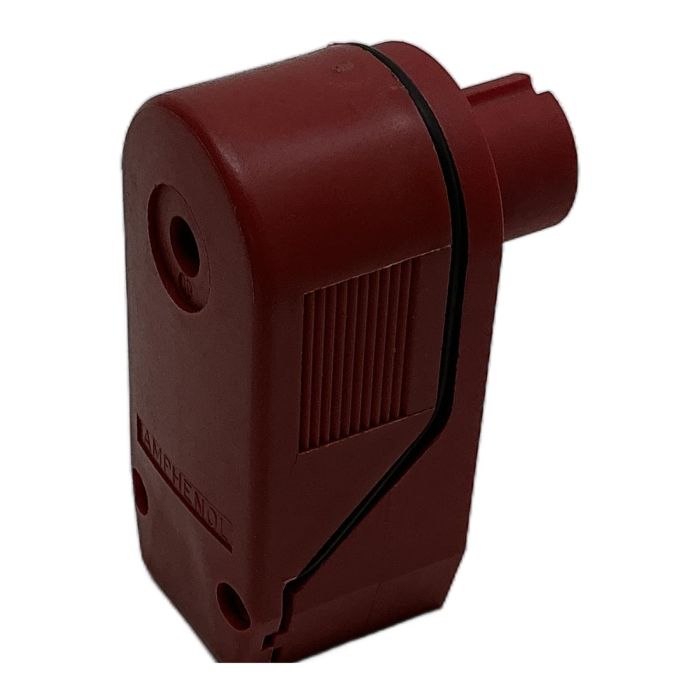

Amphenol-Tuchel C16-1 Series 7-Pin Circular Connector

Description

This is a high-quality, professional-grade right-angle female cable connector from the Amphenol-Tuchel C16-1 series. It is designed for reliability and durability in demanding industrial environments, providing a secure connection for signal and power transmission. The solder termination allows for flexible and robust field wiring.

Specifications

• Manufacturer: Amphenol-Tuchel
• Series: C16-1
• Part Number: 164 639F 5S 20
• Number of Contacts: 7 (6+PE)
• Termination Method: Solder
• Connector Type: Female Cable Socket
• Body Orientation: Right-Angle (90 degrees)
• Locking Mechanism: Screw Lock
• IP Rating: IP65 (when properly mated)
• Cable Outlet Diameter: 6.0 mm to 8.0 mm

Label Info

• Brand: AMPHENOL-TUCHEL ELECTRONICS GMBH
• Part Number: 164 639F 5S 20

Application

Ideal for use in a wide range of industrial applications, including factory automation, robotics, machine tools, control systems, and process control where a dependable and environmentally protected connection is essential.

Country of Origin

Germany

CO2 Impact

Opting for this refurbished connector over a new one prevents approximately 2.0 kg of CO2 emissions. This saving is equivalent to the emissions from driving a standard passenger car for 10 kilometers, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The solder cups on this C16-1 connector are typically designed for a maximum wire gauge of AWG 16 (approximately 1.5 mm2), allowing for both signal and moderate power transmission.

Yes, as part of the standardized C16-1 series, this female connector is fully compatible and designed to mate with any C16-1 series male connector that has the corresponding 7-pin (6+PE) layout.

An IP65 rating signifies that the connector, when correctly assembled and securely mated, is completely protected against dust ingress and can withstand low-pressure water jets from any direction. This makes it suitable for use in environments with dust, splashing water, or washdowns.
