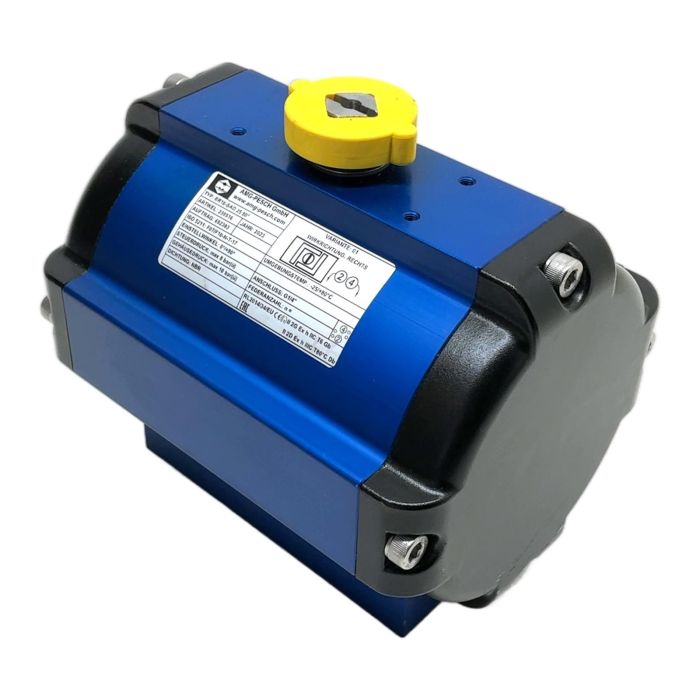

AMG-PESCH BR16-SAD 25 90 deg Pneumatic Rotary Actuator

Description

This is a double-acting pneumatic rotary actuator, model BR16-SAD 25 90 deg, manufactured by AMG-PESCH. Designed for the automation of quarter-turn valves, dampers, and other industrial components, this actuator provides a 90-degree rotation. It is built with a durable aluminum body and is suitable for use in potentially explosive atmospheres, as indicated by its ATEX certification.

Specifications

• Manufacturer: AMG-PESCH
• Type: BR16-SAD 25 90 deg
• Article Number: 239516
• Action: Double Acting
• Rotation Angle: 0 to 90 degrees
• Max Control Pressure: 8 bar
• Max Housing Pressure: 10 bar
• Pneumatic Connection: G1/4 inch
• Seal Material: NBR
• Mounting Interface: ISO 5211 F07/F10-N-T-17
• Ambient Temperature: -25 to +80 deg C

Label Info

• TYP: BR16-SAD 25 90 deg
• ARTIKEL: 239516
• JAHR: 2023
• STEUERDRUCK: max 8 bar(ue)
• GEHAEUSEDRUCK: max 10 bar(ue)
• DICHTUNG: NBR
• ATEX Rating: II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T80C Db

Application

Ideal for controlling ball valves, butterfly valves, and plug valves in various industries including chemical processing, water treatment, and general manufacturing automation.

Country of Origin

Made in Germany.

CO2 Impact

Opting for a refurbished actuator like this one prevents the emission of approximately 30 kg of CO2, which is equivalent to the emissions of a car driving 150 km.

Availability

This unit is in excellent condition and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the mounting interface for this actuator?
Answer:

This actuator uses the ISO 5211 standard mounting interface, specifically a combination F07/F10 flange with a T-17 star drive connection.

Question?
Can the rotation angle be adjusted?
Answer:

The label indicates a standard 0 to 90-degree rotation. Most actuators in this class feature end-stop adjustment screws under the end caps, allowing for fine-tuning of the start and end positions within this range.

Question?
Is this actuator suitable for explosive atmospheres?
Answer:

Yes, the label clearly shows ATEX ratings II 2G Ex h IIC T6 Gb and II 2D Ex h IIIC T80C Db. This certifies it for use in specific gas (Zone 1) and dust (Zone 21) hazardous environments.
